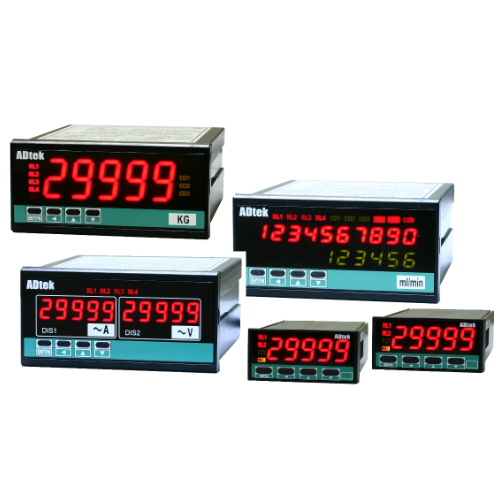

Digital Panel Meter



Model: CS1/CS2/CS3

Category: Industrial Supply

Exhibitor: ADTEK ELECTRONICS CO., LTD.

Booth No: M634





Characteristic



■ DESCRIPTION
CS2-VA series has been designed with high accuracy measurement, display and communication.
Adtek builds flexible function as like as 3 bank (for multi-range scaling and set point) and 3 external control inputs meet to various testing equipment inquiry.
They are also build in 4 Relay outputs, 3 External Control Inputs, 1 Analogue output and 1 RS485 (Modbus RTU Mode) interface with versatile functions such as control, alarm, re-transmission and communication for a wide range of industrial applications.
■ FEATURE
● Measuring Vac、Vdc、Aac、Adc、Hz、Strain 、Potentio-Meter、Resistance、T/C、Rtd、Pulse
● Optional 4 banks pre-set for all relay functions are relative to 4 difference scaling, and selectable by 3 External Control Inputs(E.C.I.) or front key
● 4 relay can be programmed individual to be a Hi / Lo / Hi Latch / Lo Latch / Go energized with Start Delay / Hysteresis / Energized & De-energized Delay functions, or to be a remote control.
● Analogue output and RS 485 communication port in option
● 3 external control inputs can be programmed individual to be Relative PV (Tare) / PV Hold / Maximum or Minimum Hold / DI (remote monitoring) / Reset for Relay Energized Latch….
● CE Approved & RoHS
