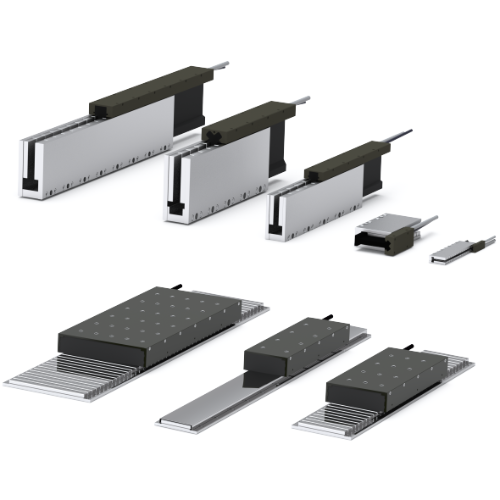

Linear Motor Series



Model: LM

Category: Key Components

Exhibitor: CHIEFTEK PRECISION CO., LTD.

Booth No: I828





Characteristic



cpc Linear Motor with Overlapped Windings

- Superior electrical insulation and heat dissipation capability

- Compact package with high-force output

- Y-beam design for excellent structural integrity and strength

- High speed and high precision
High-rigidity direct drive coupled with a closed-loop control system enables precision control to attain high-speed operations with excellent precision performances. In addition, the ironless linear motors are stable and smooth when operated at low speeds.

- Simple mechanical structure
Multiple forcers, each operated individually, can be installed on a single magnetic way to form a simple overall structure that can be readily assembled.


- For high cleanness requirement applications
The linear motor series offers solutions to dirt buildup and lubricant spray mist problems associated with conventional transmission structures containing gear gaps and ball screws. Hence this series is ideal for applications in dust-free environments.


- Low Cogging Force
Cogging force originates from the variation in magnetic pull on the iron core as the core passes through different magnetic poles on the stator.
With skewed magnets, the transition zone characteristics between poles can be modified to reduce the magnetic pull variability as well as the associated cogging force.
Using high-accuracy magnetism analysis software tools, cpc has optimized the iron core shape and the magnet skew angle to achieve low cogging force designs.


- Heat Dissipation Casing
The forcer's high-surface-area aluminum casing helps facilitate heat dissipation for the motor.


- Built-in Hall Sensor and Over-Temperature Switch
cpc's motor forcer fully utilizes its internal volume, integrating hall sensors and an over-temperature detection switch for the user, hence the user does not have to purchase or install them as optional extras.
