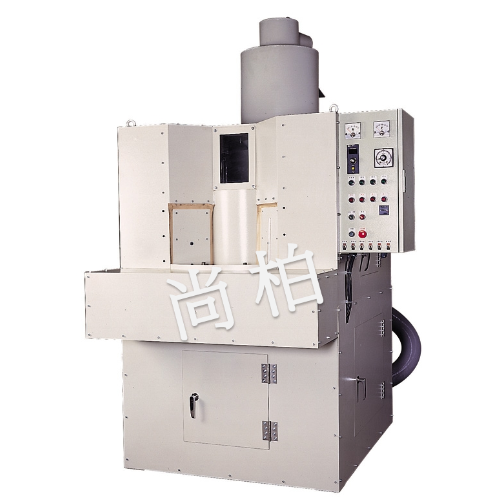

Indexing Turntable Automatic Blasting Machines

Model: TM-DC

Booth No: Q1406

Characteristic

1. Continuous and automatic blasting of workpieces. Depending on the workpieces, the motion of blast guns can be either vertically moving up and down or swinging to and fro.
2. The big turntable adopts an indexing device with 2 or 3 axles at each workstation.
3. The axles at the loading and unloading station are not rotating so the loading and unloading operation is very safe.
4. Precision positioning, automatic loading and unloading device can be integrated to the blasting machine.
5. The rotating speed of the axles, the blasting time of the workpieces and the swinging range of the blast guns can all be adjusted.
6. Because the workpieces will not be collided with each other, crashing and scraping on workpieces will not occur. All workpieces can have excellent appearance.
7. Convenient and easy to learn to operate.
8. lasting guns are provided with a swinging device so that not only the area of blasting is large but also the evenness of blasting on the workpiece surface is high.
9. Safety: at operation, if an obstacle interferes the rotating of the turntable, the safety device of this machine will stop the rotating of the turntable to protect the operator and the machine.
10. Abrasive reclaim: according to the density of the abrasives, there are elevator type and cyclone type reclaiming system. The cyclone type is commonly used for reclaiming glass beads, aluminum oxide or slicon carbide; the elevator type is mainly for steel grits and steel shots.

Application:
For blasting objects in fear of crash such as aluminum components, aqua-bike propellers, lamp covers, carpentry cutters, milling cutters, large wrench sockets, perfume bottles, plastic bottles (cups), and cylindrical workpieces.
