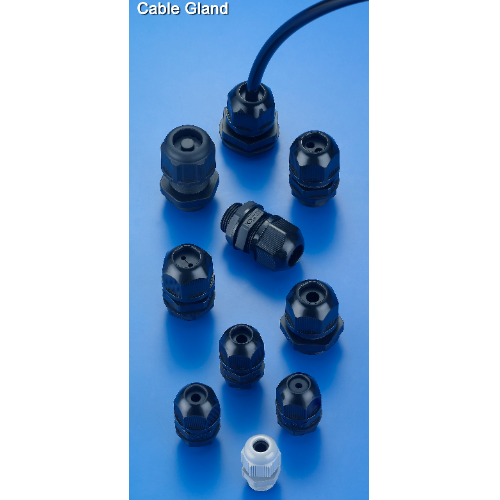

CABLE GLAND
Category: Key Components
Exhibitor: KINSUN INDUSTRIES INC.
Booth No: S1224
Characteristic
The waterproof IP68 cable gland has a wide selection of options. There are PG9, M8, M16, M20, M25, and M32 types of cable glands for different diameter panel cutouts. The sealing can fit different outer diameters O.D of cable from 2mm to 20mm. The plastic material of the cable gland is high-temperature resistant, NY66 with UL94V0 and UL746C (f1) certifications, which gives it a good ability against UV light. The gasket or washer is made of silicone with a good tenacity, elongation, and tensile strength retention rate (Pass CNS 3553 and CNS 3556 tests). In addition, the optional plastic stick or membrane seal can protect the cable gland from water or foreign objects during shipping or unused. The operation temperature is from -40°C to 105°C. All cable glands are manufactured in Kinsun’s Taiwan factory with a general 4-week lead time and satisfactory quality.
