Industrial Full-Managed Ethernet Switch
Model: 9560-16GP4XS
Category: Smart Manufacturing
Exhibitor: VOLKTEK CORPORATION
Booth No: S624
Characteristic

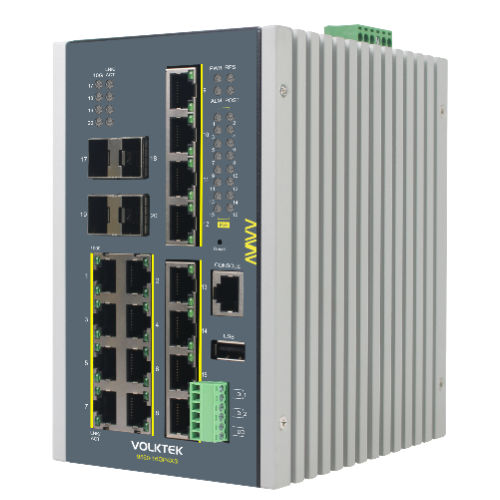

9560-16GP4XS Industrial Ethernet Switch is a 16-port 10/100/1000 BASE-T PoE+ RJ45 and 4-slot 1G/10G SFP+. There is one console port in RJ45 type and one USB port for firmware and configuration maintenance. This switch is delivered in a rugged, hardened case and components able to withstand a high degree of vibration and shock and wide operating temperature from -40°C ~70°C. Not an ordinary industrial switch, the switch is engineered and designed especially for harsh & extreme industrial-type applications. With its aluminum case, redundant DC power inputs, and high-performance components, the switch perfectly suits your extreme industrial automation environment.
Each port of the 9560 series has 2 LEDs to show the link status transmission speed and link/activity status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify admininstructors. Engineers can simply verify the hardware status by checking the LED, making troubleshooting the device a simple task.
9560-16GP4XS is created specifically to meet the increasing need for network-powered devices (PDs) that require more power. These devices include multi-channel (802.11a/b/g/n) wireless LAN access points, PTZ (pan, tilt, zoom)
speed dome network cameras, and other PoE network devices.
