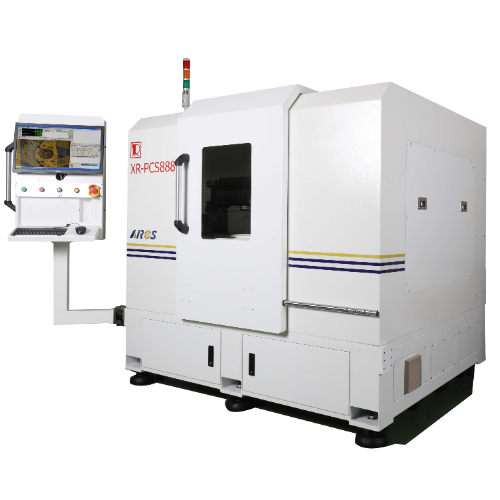

X-ray Inner layer Inspection System for PCB

Model: XR-PCS888

Exhibitor: ARCS PRECISION TECHNOLOGY CO.,LTD.

Booth No: I1308

Characteristic

For PCB multi-layer and inner layer, It can quickly detect the expansion and contraction differences status. It can analyze phenomena and summarize problems, help identify process problems and improve the process. In addition, the optical detection unit can assist in measuring product surface dimensions and angles. and location. Especially the microscopic inspection and geometric measurement of today’s ultra-precision parts
German-made industrial-grade high-power ray tube, capable of detecting expansion and contraction alignment of multi-layer inner layers
Japanese-made high-precision receiving unit can meet the high-precision requirements of the measured object
High-precision granite base, high strength, corrosion resistance, good stability
High-precision transmission shaft and precision linear guide rail ensure movement accuracy and stability, and are durable.
High-resolution color CCD, high-definition image effect, high-quality measurement screen, ensuring accurate measurement
Surface light (adjustable in 24 zones) and bottom light adopt continuously adjustable LED light sources, and are equipped with coaxial light suitable for ultra-high magnification measurements.
Precision optical ruler with a resolution of 0.0001mm
The optical image positioning accuracy error can be less than 1um, which can meet the high-precision requirements of the measured object.
Equipped with SI-903 exclusive X-ray automatic image measurement analysis and induction software, the interface is friendly, easy to learn and use, powerful functions and easy to operate.
Complete automatic boundary finding and deburring function reduces human errors and improves work efficiency
Visual programming, users can program according to imported DXF files, suitable for batch inspection
Report output function with pictures and texts to easily output test results
Twelve-month warranty for the entire machine
