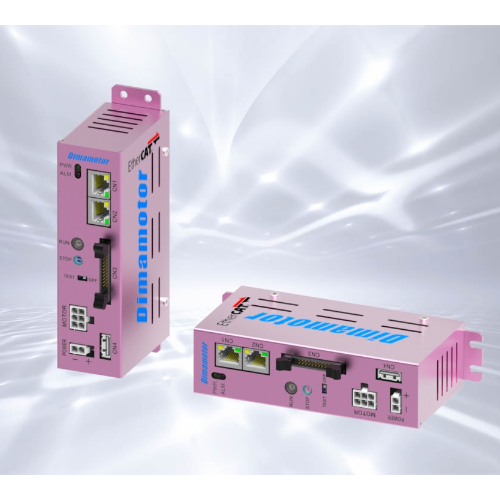

EtherCAT communication type two-phase micro-stepping driver

Model: DSE23HMD / DSE23MD

Booth No: N124

Characteristic

●Using DC24V power supply, no safety restrictions apply to all parts of the world.
●The EtherCAT Slave is integrated with the driver, which saves the relay box and simplifies the wiring.
●Support CIA402 protocol, provide PV, CSP, CSV, HM mode.
●The encoder type stepping motor position signal can be directly pulled back to the driver for monitoring.
●Slave with different number of axes can be controlled to act or not act at the same time.
●Intelligent drive, with AGC function, real-time power adjustment according to dynamic load, effectively reducing the temperature rise problem of stepper motor.
●It can do full-step, half-step and micro-step driving, and the micro-step resolution can be divided into 800/1600/3200/6400/12800/256
