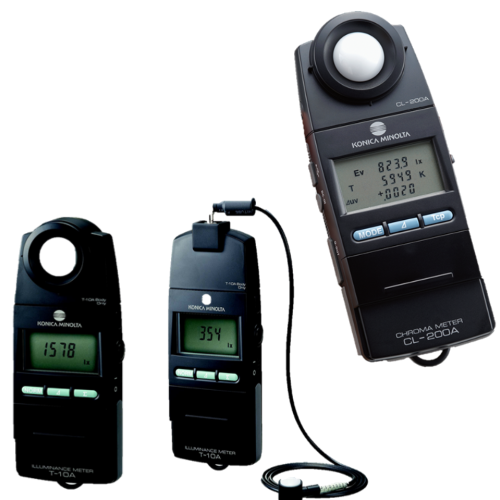

Chroma Meter 、Illuminance Meter

Model: CL-200A、T-10 Series

Category:

Booth No: S1304

Characteristic

CL-200A：
A cost-effective solution for measuring illuminance and tristimulus colour of light. Measurement data includes lux, CCT, xy coordinates.
█ Tristimulus colorimeter to measure colour and illuminance of light sources
█ Measurement range: 0.1 to 99,990 lx, 0.01 to 9,999 fcd
█ Data output: Tristimulus values (XYZ), Ev xy; Ev u'v'; Ev, Dominant wavelength, Excitation purity
█ Conforms to Class AA of JIS C 1609-1
█ Detachable measuring head and multi-point measurement option

T-10A：
A professional illuminance meter that provides accurate and traceable lux or fcd over a large measuring range. Can be used with a detachable receptor head for remote measurement or in multi-point mode by connecting up to 30 receptors to cover a large area. A custom version with a small sensor connected by a 1m connecting cable and a waterproof version with a 5 or 10 meter connecting cable are also available.

█ Compact, lightweight and easy to use multifunctional Illuminance Meter
█ Measurement range: 0.01 to 299,000 lx with automatic range switching
█ Conforms to DIN 5032 Part 7 Class B
█ Detachable receptor head for remote measurement
█ Multi-point mode connecting up to 30 receptors to a single measurement head
█ Small receptor head to measure illuminance in special situations
█ Automatic zero adjustment for immediate measurement
█ Measurement of Pulse modulated Light sources (PWM)
