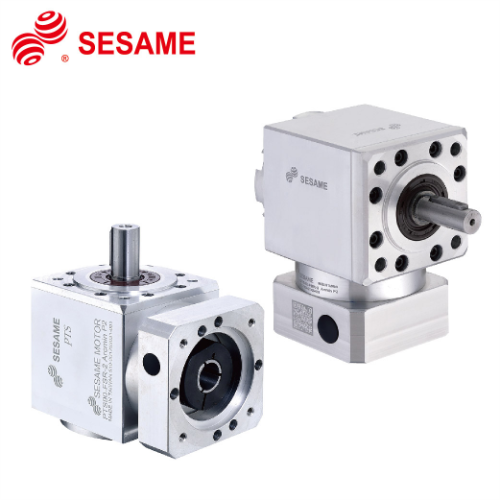

Spiral Bevel Gearboxes



Model: PT

Category: Key Components

Exhibitor: SESAME MOTOR CORP.

Booth No: N/A





Characteristic



SESAME servo spiral bevel gearboxes are ideal for use in applications that require high dynamic motion control. Compact and rigid gearbox design ensure good performance with space and weight efficient at the same time. Low noise, low vibration, lubricated for life and IP65 sealing benefit virtually maintenance-free operation for 20,000 hours. They are provided in seven sizes with flange or shaft inputs/outputs. Servo motor input speed up to 8,000 rpm. Multi flange or shaft outputs in standard backlash less than 6 arc-minutes. Maximum gear ratio 500:1, maximum frame size 210 mm. A wide range of motor adapter are available for installation to virtually all servo motors.

■ Compact and rigid design ensure performance within light and small gearbox size
■ High rigidity, low noise, low vibration
■ 7 frame sizes, 22 ratios, 3 stages, multi configurations
■ Unique heat treatment alloy steel gears
■ One-piece gearbox for high precision and high torque requirements
■ Lubricated for life and IP65 sealing
■ High operating efficiency more than 98%
