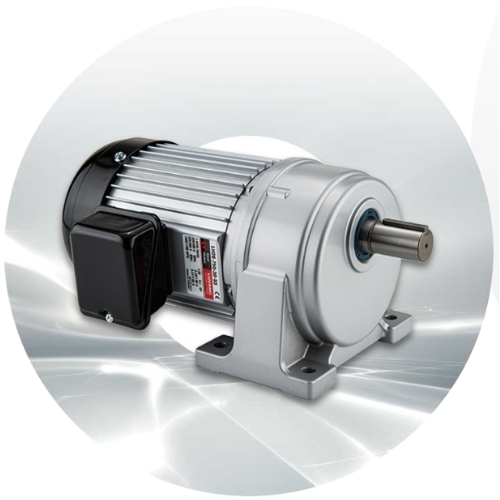

【L Series】LH horizontal / LV Vertical Gear Motor

Booth No: N/A

Characteristic

LH horizontal / LV Vertical gear motor is a parallel shaft gearmotor, which uses a multi-stage gear design, and can perform high torque and low output speed (Rpm). Through the design of the leg mount, it is convenient to be fixed on the base of the machine or the floor for transmission.
Through unique design and explicit quality inspection, our gear motors can perform in low noise, low temperature rise, and long lifetime. In addition, all gear boxes are under restricted inspection to ensure no oil leakage and stable operation.
We use lightweight aluminum alloy material with high heat dissipation and adopt baking paint treatment so that the product is light and compact in design.
You can select a brake assembly as brake gearmotor type, or the product certified by UL and CE specifications. Or high-efficiency motors IE3 level can also be specified now.

Can produce according to different voltages of countries.
The helical gear realizes low noise by high precision machining.
Grease anti-leakage design and no need to change grease.
Using lightweight aluminum alloy (except LH40 and LH50) with baking paint treatment.
Integrated structure.
Products with high efficiency motors can be selected.
Applied in packaging machine, food machine, automation equipment, conveyor system, CNC machine, auto feeder and other industries.
Made in Taiwan with stable quality.
