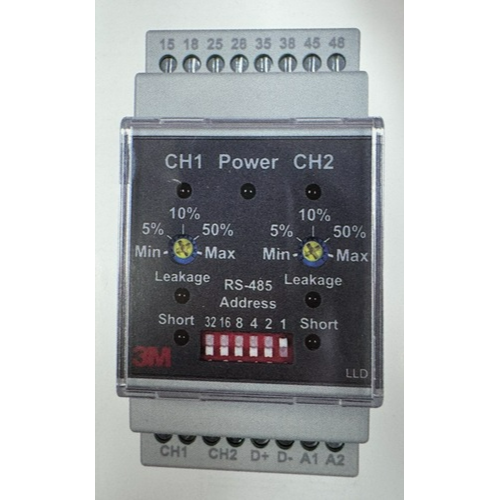

LLD 24014-D Leak Detector



Model: LLD 24014-D

Category: Hardware and Factory Equipment

Exhibitor: MING HONG MATERIAL CO., LTD.

Booth No: N/A





Characteristic



• Open-Circuit Detection: Supported
• Power Supply Voltage: 24–48 VDC
• Sensor Line Voltage: +2.5 VDC
• Internal Signal Type: Digital
• Output Contacts:
 • 2A dry contact (for leak/short-circuit detection)
 • 2A dry contact (for open-circuit detection)
• Leak Alarm / Reset Time: < 5 seconds / < 3 seconds
• Max Length of Detection Tape & Signal Cable:
 • Detection tape: up to 400 meters
 • Signal cable: up to 100 meters (included in total length)
• Detection Sensitivity Range:
 • 0–10KΩ–1MΩ
 • 0–60KΩ–6MΩ
 • 0–300KΩ–30MΩ
 • 0–600KΩ–60MΩ
• Adjustable Sensitivity: Yes
• Automatic Leak Alarm Reset: Yes
• Short Circuit Indication on Detection Tape: Yes
• Communication Interface: RS-485
