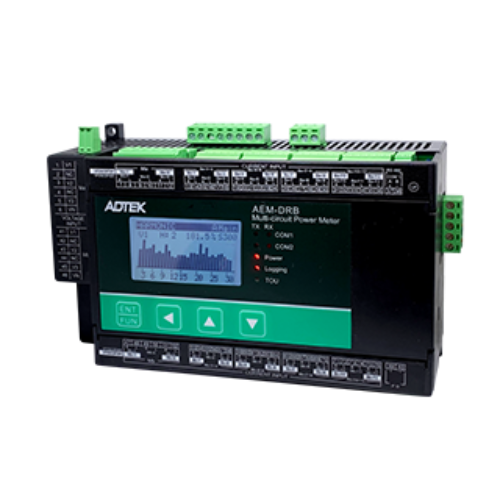

AEM-DRB Multi-Circuit Power Meter (DIN rail)

Model: AEM-DRB

Booth No: L525

Characteristic

■ DIN Rail mounting and with clamp-on CT measurement achieves space saving and the reduction of time installation.
■ 30-loop design for current input measurement: 6 loops for main circuits; 24 loops for branch circuits.
■ Flexible phase wire connection: a set of three current terminals can be set as 1P2W/ 1P3W/ 3P3W/3P4W to proceed load measurement depends on the setting of the phase wire for main curcuit.
■ Example: when one of the branch loops was set as 1P2W, then each current terminal could connect with other phase voltage to achieve load balancing( main circuit is set as 3P4W).
■ There're 15 current terminals on upper and lower sides which are completely isolated. They can be used for dual power system measurement.
■ Each loop is equipped with the function of THD and 31st HD measurement that can be applied on the monitoring of power quality in the industries of precise manufacturing/ semiconductor devices.
■ Each loop is able to proceed TOU for electricity cost sharing of rental market.
■ Offer 2MB Flash ROM for data log.
■ Dot-matrix LCD display with conversational user interface, easy for on-site operation; offer setting software for batch setting.
■ Offer 2 sets of DI and 4 sets of relay outputs for multiple function of I/O control functions for on-site monitoring/alarm.
■ Offer 1 set of RS485 Modbus RTU and optional requirement for another set of RS485, or Ethernet (Modbus/TCP).
■ Optional colorful touch screen over 7" size (HMI) for job site needs.
■ Designed to CE standard and Cat Ⅱ standard.
