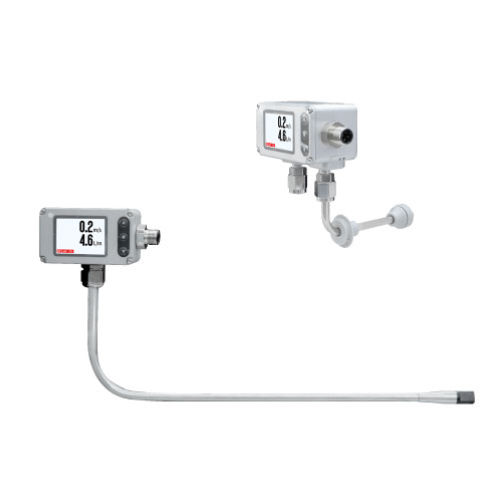

eyc-tech FDM06-L laminar/overflow Bi-directional Low Air Flow Thermal Mass Transmitter
Model: FDM06-L1, FDM06-L2
Category: Industrial Automation
Exhibitor: YUDEN-TECH CO., LTD.
Booth No: S910
Characteristic
Features : Designed for laminar/overflow monitoring in cleanrooms and pharmaceutical facilities.
● Based on the hot-wire principle, featuring bi-directional measurement.
● High sensitivity for low airflow, dual temperature sensors, ideal for laminar flow / overflow.
● 2" LCD color screen with easy settings via buttons.
● The screen displays airflow and air velocity, integrated with UI settings.
● Accuracy : ±1.0%, operating pressure 16 bar
● Multiple outputs: Analog output / Relay / RS-485
Sensor type : Hot-wire sensor
Turndown ratio : 100 : 1
Measuring range : ±(0.00 ... 1 m/s), ±(0.00 ... 2 m/s), ±(0.00 ... 10 m/s)
Output : 4 ... 20 mA / 0 ... 10 V / Relay / RS-485
Accuracy : 0.05 ... 1.00 m/s:±(1% of mv+0.05 m/s), 0.05 ... 2.00 m/s:±(1% of mv+0.1 m/s), 0.1 ... 10.00m/s:±(1% of mv+0.2 m/s)
IP rating : IP65
