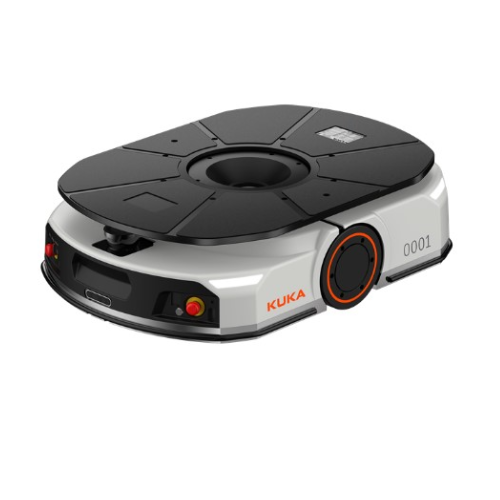

KMP 600-S diffDrive



Model: KMP

Category:

Exhibitor: KUKA AUTOMATION TAIWAN LTD.

Booth No: L108





Characteristic



At up to two meters per second, the KUKA KMP 600-S diffDrive mobile platform offers speedy performance – and uses laser scanners and 3D object detection to meet the highest safety requirements. This automated guided vehicle system takes industrial intralogistics to a new level.

The KUKA Mobile Platform KMP 600-S diffDrive opens up new avenues and provides greater flexibility for production intralogistics. As an automated guided vehicle (AGV) with a payload of up to 600 kilograms.

The KMP 600-S diffDrive also can expand with 3D object detection for autonomous detection of obstacles from 50 mm to 2.1 m above the ground. At the same time, the KMP 600-S diffDrive is ideally equipped for the tough everyday environment of industrial production. Its IP 54 design always enables it to work reliably even under adverse conditions – including water spray and dust.

The AGV travels up to 2 meters per second. Full speed in all directions of travel. Integrated lifting device for lifting up to 60 mm in less than 3 seconds

This software solution's smart SLAM algorithm (Simultaneous Localization and Mapping) maps the surroundings and takes over localization in space (on the vehicle itself) as well as coordination of all the automated guided vehicles (on a central computer).
