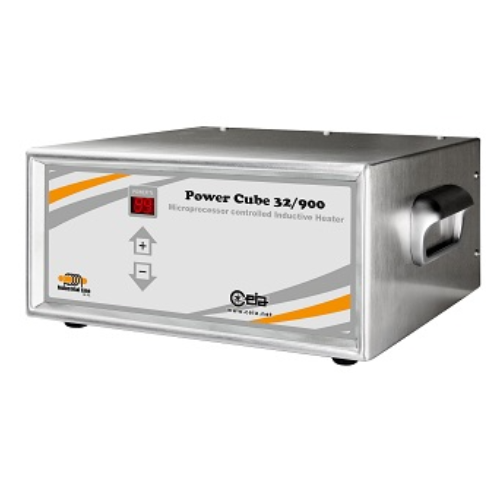

Power-Cube High Frequency Inductive Heater 32/900

Model: PC 32/900

Exhibitor: PRESIDENT HONOR INDUSTRIES CO., LTD.

Booth No: I1320

Characteristic

Power supply: unidirectional 220V
Apparent power: 3.2kVA
Frequency: 750~1150 kHz
Case size: 275 X 265 X 130 + 10mm foot pad
The connection between the main unit and the extension unit uses a military-standard connector
13 active detections and multiple passive protections, reliable and durable
Safety has passed the EU industrial machinery safety certification and multiple safety standards for induction heating devices
Electromagnetic compatibility has passed the EU emission equipment standard and passed multiple electrical tolerance tests
Low electromagnetic leakage cable, passed the EU EN55011-A2 industrial standard
Can be paired with dual induction heads, but need to be used independently at an interval of 0.4 seconds
Specially focused on instant local heating of extremely fine objects, and also suitable for automated production equipment
