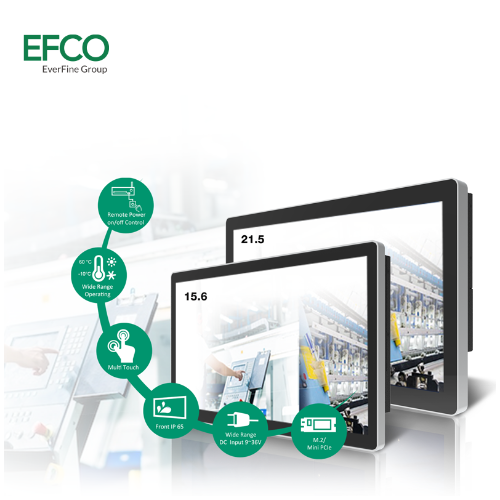

Full HD Industrial Panel PC

產品型號：TPC Series (TPC-15U7,TPC-21U7)

產品分類：

攤位號碼：I406

產品特色

Intel® Core™ U Series Full HD Industrial Panel PC

• Intel® Gen. 7th Core™ i7, i5, i3 and Celeron® processor
• IP65 Compliant aluminum front bezel
• Fanless operation@ -10~60°C environment (TPC-15U7 only)
• Internal multiple Mini card & M.2 slot for expansion
• Suitable for Automation, HMI, general purpose applications
• Wide-Range DC voltage input: 9V~36V
• 2x DP/1x VGA/ 16-bit programmable GPIO/ 2x RJ45 GbE/ 1x audio
• 4x USB 3.0 ports/ 1x RS-232/422/485 port/1x RS-232 port
• 2x Mini-PCIe with USIM socket/ 1x mSATA socket/ 1x 2.5” SATA/ 1x M.2 M Key 2242 PCIe/SATA [internal expansion]
