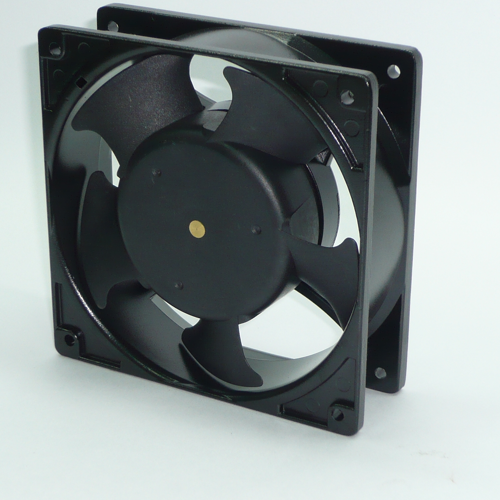

SK109散熱風扇



產品型號：SK109

產品分類：智慧製造相關

廠商名稱：神逵企業有限公司

攤位號碼：P524



產品特色



產品尺寸120x120x38mm，此風扇最大風量為105CFM。全球工業市場裡最基本也最受歡迎的12038風扇，輕巧的尺寸能夠簡單又不費力地安裝在任何機台裡解決擾人的過熱問題。

The size is 120x120x38mm, or for inch: 4.72"x4.72"x1.5". Its weight is 0.5kilo with two-ball bearings.
This model passes dialectic withstand voltage test: 1 min. at 1500VAC, 50/60Hz, and has approved by UL, CUL, TUV and CE. Also it is environmental friendly with RoHS compliant.
Two voltages can be applied: 110V or 220V.
Three speed options are available – high, medium and low. Under 60Hz high speed model performs 3000RPM.
The maximum airflow is 105CFM and maximum static pressure is 0.35 inch-H2O.

It is the most popular and basic item in industrial worldwide. The petite size is effortless to install on any machine for heating solution.
