ProRange Steel Telescopic slide

Exhibitor: SLIDING SYSTEMS ASIA CO., LTD TAIWAN BRANCH (UK)

Booth No: Q927

Characteristic

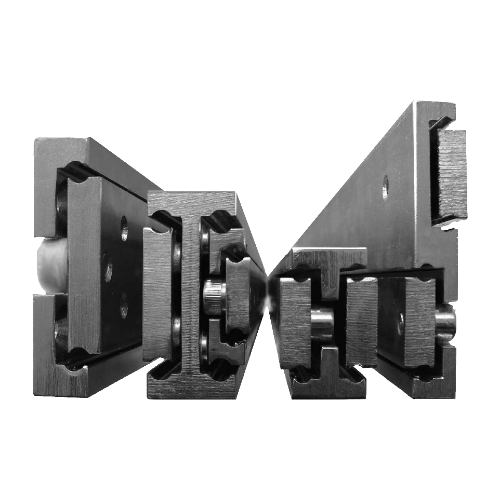

The ProRange Steel telescopic slides have been designed to work under conditions of extreme shock and vibration, most models have the tried and tested 'I' beam format where strength and rigidity is required with minimal slide deflection. This method of manufacture is far superior to other processes where slides are made from rolled or drawn 'C' sections which are liable to failure on extreme applications. This range is available in a number of formats which offer extensions from 50% through to 100% and even 200% of the slide's closed length. We offer bi-directional extension as standard. Our slides are tested to destruction, and we confidently work up to 2,000kg with the largest profiles. Load calculations are based upon 1% deflection of the slide's closed length when fully loaded per extended pair. This rises to approximately 2% on our 150 and 200% extensions due to the multiple beams. The entire range is manufactured from high grade carbon steel type C45 E+C which ensures a slide with strong raceways, fit for the industrial purpose they were designed.
