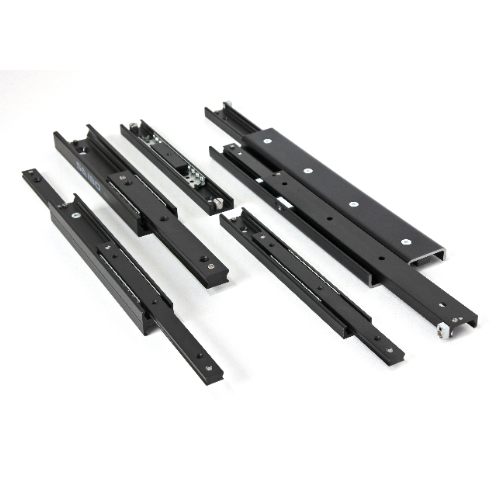

Saibo Hardened Telescopic Slides



Category: Key Components

Exhibitor: SLIDING SYSTEMS ASIA CO., LTD TAIWAN BRANCH (UK)

Booth No: N/A





Characteristic



Saibo hardened telescopic slides are designed for industrial applications requiring robustness and precision. The compact design of the rail specifies a four point bearing contact, with a very smooth travel and zero play between the beams. All Saibo steel ball-races are manufactured from German sourced cold drawn steel and induction hardened to 58+4 HRC. Similar to that of the running bearings, allowing for very low displacement forces, yet increased longitudinal acceleration. In addition to the induction hardened raceways, the beams have an enhanced black zinc 20µm corrosion protection which is both RoHS and REACH compliant. The durability and excellent wear resistance of Saibo telescopic slides makes them ideal for applications such as AS/RS shuttles and robotic pick & place system.
