Pneumatic Actuated Ball Valve (PVC Valve)
Model: AD100
Category: Key Components
Exhibitor: PIN CHING AUTOMATIC VALVES CO., LTD.
Booth No: L1223
Characteristic
[Pneumatic plastic ball valve] DDD Enterprise Co., Ltd.
★Introduction: Use Air compressed air to rotate the valve through the pneumatic driver to achieve automatic control of the ball valve.

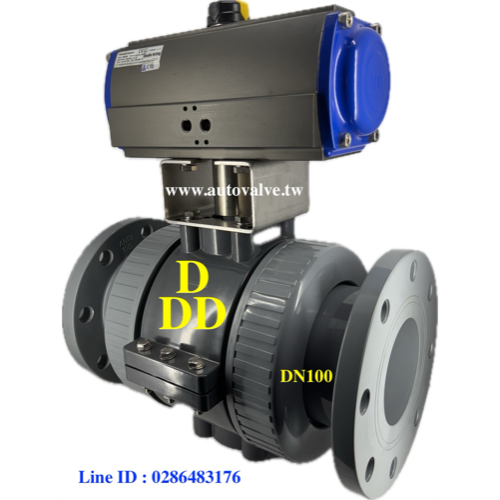

AD100 – Pneumatic ball valve (plastic valve body) made in Taiwan
★Features: AD driver adopts Scotch-Yoke durable shift fork crankshaft sliding oil-free and maintenance-free 2 million times
The ball valve adopts high durability and low torque design, suitable for water, hot water, acid and alkali liquids
★Origin: The pneumatic actuator is purely made in Korea, SIL3 ATEX IP68 CE
The ball valve is purely made in Taiwan, a domestic manufacturer
★Certification: SIL3, ATEX, IP68, CE(TUV)...international certification (not self-declared CE)
★Optional: air-controlled solenoid valve; valve position sensing-micro switch display; valve proportional opening; attached manual
★Port: 1/4”PT (double acting; single acting)
★Size: 1/2”~4”(DN15~DN100) Straight through full flow
★Material: valve body UPVC, CPVC, PP, PVDF; O-ring EPDM, Viton, FPM
★Mouth gauge: socket cannula, butt joint, dental mouth, flange mouth (ANSI, JIS, DIN, ASTM, Taiwan regulations)
★Fluid: 0°C~+50°C(UPVC); 0°C~+80°C(CPVC)
★Technical consultation Looking for cheap, durable and reliable pneumatic valves
★Welcome to join Line ID: 0286483176
