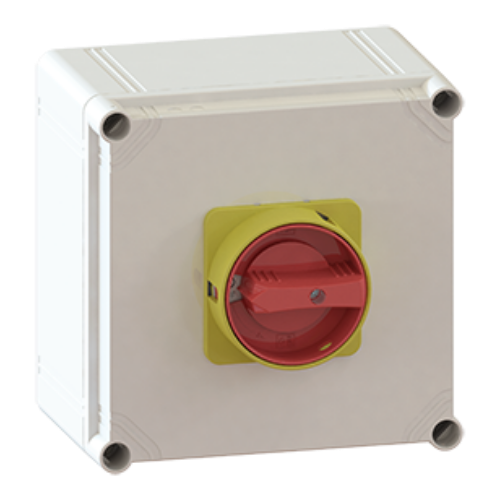

Merz Repair and Maintenance Switches
Model: MZ57323
Category: Key Components
Exhibitor: INNOVA COMPONENTS CORP./EMA ELECTRONICS CORP.
Booth No:
I027
Characteristic
Repair and Maintenance Switches are used to safely shut down machines and facilities that are not directly connected to a control unit or may bare the risk, that the machine or facility starts operating during maintenance or repair activities. The handle of such switches must be lockable by interlocks in order to prevent workers from hazardous situations and must meet the same requirements as main switches according to EN 60204.
• Cable inlet both sides situated in line of the conduct
• Optional in UV and weather-resistant design for outdoor use
• Special enclosure for Cam and Compact Switch
• Safety switch with securing clip
• Comfortable wiring
• Optional with pressure compensation element
• Low enclosure shape
• Switch insert plugged
• Optionally with EMC accessories
• IP-Rating IP65
• DIN VDE 0106 Part 100 and VBG 4 -> finger safe
• In red / yellow and black / gray available as main switch
For more information, please refer to http://www.everharmony.com.tw
