DC Super Compact Servo/BLDC Drive (EtherCAT / CANBUS)
Model: M1
Category: Key Components
Exhibitor: DEXMART TECHNOLOGY CORPORATION
Booth No: P316
Characteristic

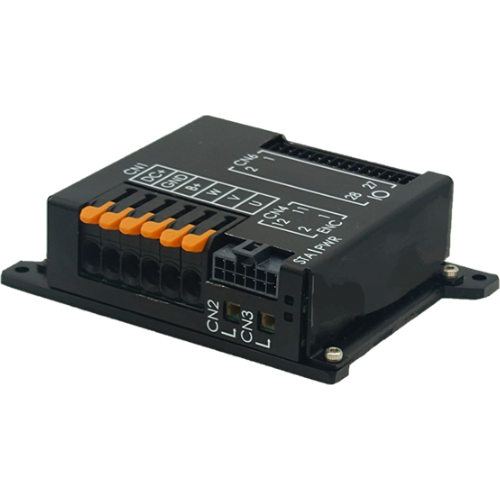

Ultra-Compact Motor Drive Controller
Main Features:
- Dimensions: Only 90 x 75 x 30 mm
- Wide Voltage Range: DC 24V to 48V
- High Power Density: Compact size with power up to 600W
- Supports Various Motors: Precision control for brushless, servo, and brushed motors
- Electromagnetic Brake Control: Built-in electromagnetic brake control function ensures operational safety and reliability
- Regenerative Discharge Control: Provides regenerative discharge functionality to enhance energy efficiency
- RS485 Modbus Communication: Supports RS485 Modbus protocol for network control of multiple drives (Multi-drive)
- CANBUS / CANOpen Protocol: Supports CiA 402 / 301 protocol, facilitating integration with various industrial equipment
- EtherCAT Model: Enables high-speed and real-time network communication control
- Multiple Control Modes: Offers open-loop control, speed control, and position control to meet various application needs
- STO Safety Control Function: Provides a straightforward architecture for implementing safe shutdown commands
- ROS / ROS2 control node API supported.
For inquiries, please call or email:
Dexmart Technolog Corp.
+886-2-2225-9655
sales@dexmart.com.tw
