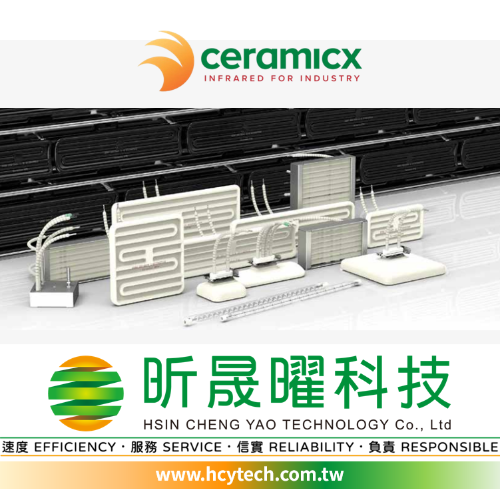

Ceramicx Infrared Heating Systems



Model: FTE/HTE/QTE、FFEH/HFEH/QFEH、FQE/HQE/QQE、PFQE/PHQE

Category: Industrial Automation

Exhibitor: HSIN CHENG YAO TECHNOLOGY CO., LTD.

Booth No: N/A





Characteristic



✅ Europe's largest manufacturer, 100% quality inspection, unique laser serial number, guaranteed quality.

🔶 Far Infrared Ceramic Heater 🔶
Standard Power: 125W～1500W (customizable for special power)
Standard Voltage: 230V (customizable for different voltages)
Wavelength Range: 2µm~10µm
Maximum Temperature: 750℃
Radiation Coefficient: 0.9
Wire Length: 120mm (customizable up to 300mm)
Maximum Lifespan: 15000hrs

🔶 Medium to Long Wave Quartz Heater 🔶
Rapid heating suitable for intermittent production or fast temperature rise, with a heating speed twice that of the ceramic series.
Standard Power: 125W～1500W (customizable for special power)
Standard Voltage: 230V (customizable for different voltages)
Wavelength Range: 2µm~10µm
Maximum Temperature: 900℃
Radiation Coefficient: 0.7
Wire Length: 120mm (customizable up to 300mm)
Maximum Lifespan: 15000hrs

🔶 Short Wave Halogen Heater 🔶
Ultra-fast heating and cooling.
Standard Power: 750W～2000W (customizable for special power)
Standard Voltage: 230V (customizable for different voltages)
Wavelength Range: 1µm~1.6µm
Maximum Temperature: 2600℃ (filament temperature)
Maximum Lifespan: 10000hrs
Heater length can be customized.
Reflective coating can be customized.

🔶 Customized Long Wave Panel Heater 🔶
A high-purity and durable heating solution.
Standard Power: 1.5~2.3W/cm² (different power can be produced for different areas)
Standard Voltage: 230V (customizable for different voltages)
Wavelength Range: Below 10µm
Maximum Temperature: Determined by the size and power density of the area
Maximum Lifespan: Can exceed 20000hrs

🔶 Heating System Accessories 🔶
Ceramic Terminal Blocks, RAS Aluminum Coated Steel Reflectors, QT Quartz/Halogen Reflectors,
E27 Edison Lamp Holder and Heating Mounting Base, Special Dustproof Components, etc.

🤙Contact us for more information📱

Hsin Cheng Yao Technology Co., Ltd
☎️ +886-3-2753572
✉️ service@hcytech.com.tw
LINE: @609ahpvx
🌐 https://www.hcytech.com.tw
