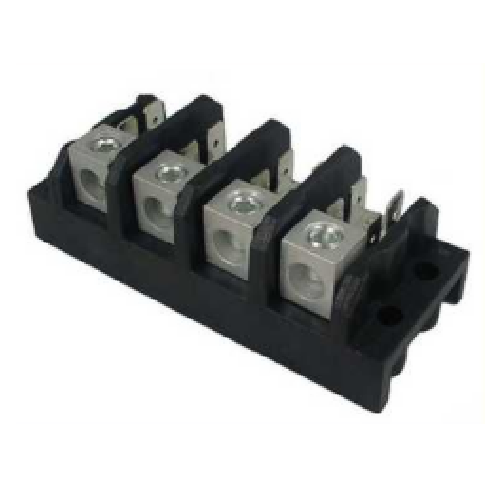

TGP-085-04A Panel Mounted Power Distribution Terminal Block
Model: TGP-085-04A1
Category: Industrial Automation
Exhibitor: SHINING E&E INDUSTRIAL CO., LTD.
Booth No: N/A
Characteristic
TGP-085-04A1 Panel Mounted Power Splicer Terminal Block
The terminal block does not need to be mounted on a 35mm (width) DIN rail. It can be installed on panel through screws.
The wiring method: Bare Wiring for Input. Snap-On Terminal for Output.
1 input and 4 output per pole. For Power distribution.
Electrical Specifications: 600V, 85A, 4 Pole (1 input and 4 ouput per pole)
Dimension: 97.4 x 41.0 x 33.2mm (L x W x H)
Input Wire Size: 2.0~33.0mm2 (AWG 14-2)
Output Wire Size: 0.5~5.0mm2 (AWG 20-10)
Screw Size: 5/16-24 Hexagob Socket Set Screw
Housing/ Insulated Material: PBT
Flame Retarded Grade: UL94-V0
UL/cUL approved.
