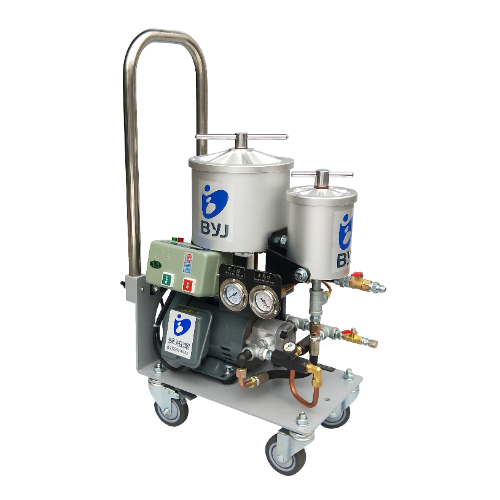

BYJ Oil Filtering Machine

Model: MP-1RE

Category:

Booth No: N/A

Characteristic

Movable Precision Oil Filter Machine MP-2RE

Product ID: MP-2RE
Suitable capacity of oil reservoir: Less than 100 liter

Specifications:
Flow at 50Hz: 0.65-3.0 liter/mints ;Flow at 60Hz: 0.8-4.0 liter/mints
Suitable capacity of oil reservoir: Less than 100 liter
Normal pressure setting for mercury: 1-3 kg/cm2
Port diameter ( in_out ): 3/8_1/4
Weight: 31 kgs
Dimension: 60x33x60 cm
Motor: 1/2 HP
Voltage: On request
Single phase
50HZ/60HZ
Apply filter core: G-100 x 1 pcs
The smaller tank contains a reusable pre-filtering mesh
Length of pipes: 3 meter
Length of power cord: 5 meter
Each machine contains one set of filter core

Features:
Occupying small space.
Operating with single-phase power and built for plug-and-operate use.
Equipped with pre-filtering mesh to protect the pump and extend the service life of precision oil filter.
Equipped with pump for operating independently, enable to filtration oil continuously, clearness performance reach to NAS grade 6~9, which is even better than new oil, possibly no oil change for 10 years.
By using purified oil, the mechanical failure can be substantially reduced, mechanical service life to be extended, also quality and productivity to be improved.
Equipped with warning indicator for filter replacement and overpressure, and automatic shutdown mechanism.
Enable to be used as oil pumping unit.
Simple installation, no machine stoppage necessary, and easy to maintain.
The filtration performance would be even better with the machine running.
