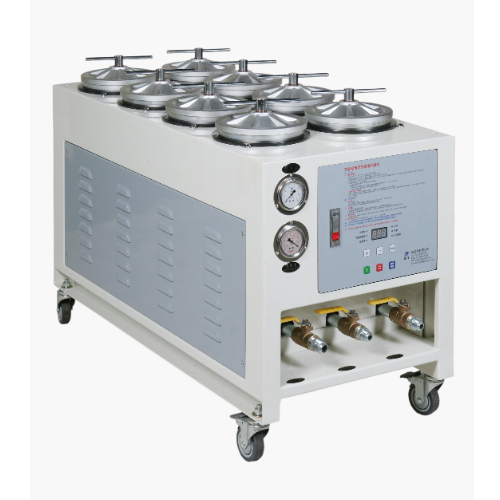

BYJ Ultra Precision Oil Filtering Machine

Model: MP-7R

Category:

Booth No: N/A

Characteristic

Suitable capacity of oil reservoir: 1700-2000 liter

Specifications:
Flow at 50Hz: 4.6-25.0 liter/mints; Flow at 60Hz: 5.6-30.0 liter/mints
Suitable capacity of oil reservoir: 1700-2000 liter
Normal pressure setting for mercury: 1.5-3 kg/cm2
Port diameter ( in_out ): 5/8_3/4
Weight: 138 kgs
Dimension: 110x51x75cm
Motor: 1 HP
Voltage: On request
Three- phase
50HZ/60HZ
Apply filter core: G-100 x 7 pcs
One of the tanks contains a reusable pre-filtering mesh
Length of pipes: 4 meter
Length of power cord: 5 meter, 4-conducto
Each machine contains one set of filter core

Features:
Equipped with pre-filtering mesh to protect the pump and extend the service life of precision oil filter.
Equipped with pump for operating independently, enable to filtration oil continuously, clearness performance reach to NAS grade 6~9, which is even better than new oil, possibly no oil change for 10 years.
By using purified oil, the mechanical failure can be substantially reduced, mechanical service life to be extended, also quality and productivity to be improved.
Equipped with warning indicator for power leakage and voltage overload, and automatic shutdown mechanism.
Equipped with warning indicator for filter replacement and overpressure, and automatic shutdown mechanism.
Filter operation can be set for specific number of days, hours, minutes, or kept switched on continuously; it can also be used as oil pumping unit.
When using three-phase power, the motor automatically detects the change of rotation direction, to avoid the troubles of reconnecting the machine.
Simple installation, no machine stoppage necessary, and easy to maintain.
The filtration performance would be even better with the machine running.
