Ethernet Multi-channel High-Speed Data Acquisition System

Model: DAS-8421/DAS-8821

Booth No: N/A

Characteristic

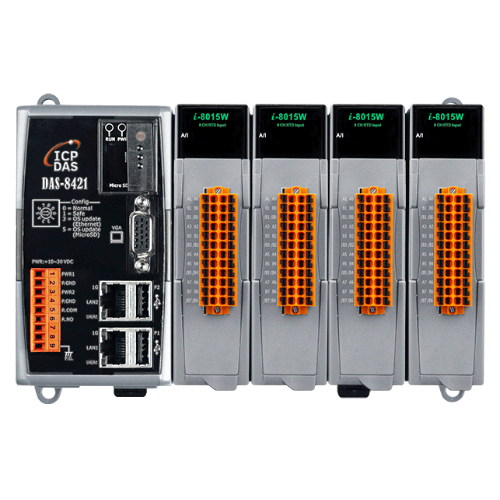

DAS-8421/DAS-8821 is a multi-channel high-speed data acquisition system based on a real-time multi-tasking operating system and Gigabit Ethernet communication. It can meet customers' needs for high-speed and real-time data acquisition and analysis when used with various high-speed data acquisition modules.

The host hardware's high-performance data processing capabilities allow continuous streaming of acquired data back to the PC, achieving high-speed, large-scale data acquisition. The PC provides SDK libraries to receive data according to different scenarios and transmit it to the customer’s application software or development programs. Additionally, the host supports the Modbus/TCP Slave communication protocol, allowing the PC to use the Modbus/TCP communication protocol to poll and collect data from the host’s modules. Various software development tools are available to assist customers in developing in various operating system environments, with SDK and example programs provided for Windows (VC, C#, VB.NET, .NET) and Linux (C/C++, .NET). Open-source libraries and example programs for Python and .NET are also provided to facilitate high-speed data analysis and diverse, customizable applications using DAS-8000.
