Tunable Diode Laser Spectrometer TDLS8100/TDLS8200

Model: TDLS8100/TDLS8200

Booth No: N/A

Characteristic

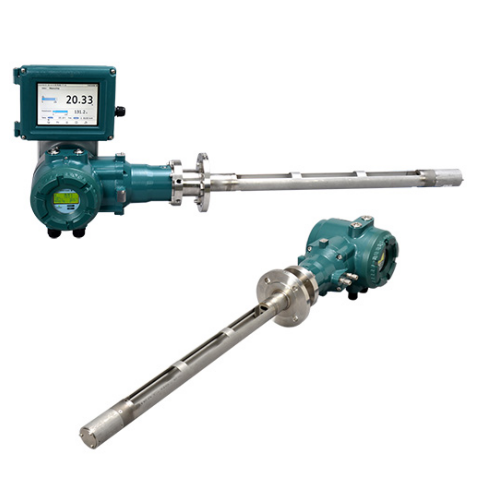

Yokogawa's new TDLS8100 retains all the industry-leading features of the TDLS8000, while requiring only single-flange installation, making installation easier. Using a probe for measurement eliminates the need for sample extraction and conditioning, making it suitable for a wide range of harsh industrial environments. Compared to conventional point-type sensor technologies, the 0.5-meter probe provides an averaged measurement over its length and allows flexible positioning of the measurement area, offering different insertion lengths.

The TDLS8200 is equipped with a dual-laser optical system, enabling the measurement of O₂ and CO or CH₄ within a single unit. It can replace existing sampling-based equipment with any of these measurement combinations. Yokogawa’s second-generation TDLS analyzers continue to offer outstanding reliability, easy installation, and reduced maintenance requirements. The new version further reduces the total installation cost for O₂, CO, CH₄, NH₃, and HCl measurements.
