Mini electric proportional ball valves, Pinqing is the most professional. Made in Korea and Taiwan. LCE 0~100% Display, CSA IP68 CE(TUV)

Model: KE001 KE001 Smrat M Control

Category:

Exhibitor: PIN CHING AUTOMATIC VALVES CO., LTD.

Booth No: L1223

Characteristic

★[Mini electric proportional ball valve PVC valve body] DDD CO. Valve Industry specializes in various electric proportional plastic ball valves
UPVC two-way electric proportional valve PVC electric proportional ball valve UPVC electric valve mini electric PVC valve

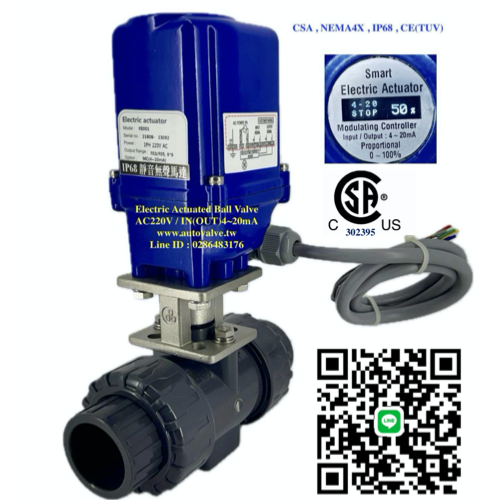

★Introduction: Use power electricity to rotate the ball valve through the electric driver to achieve electric automatic control of the plastic ball valve.
★Features: Mini all-aluminum alloy shell electric driver, silent and low-temperature motor, highly durable, long-term lubrication of gears at the factory, maintenance-free
[Smart proportional control] In/Out 4~20mA (upper LCD display 0~100% & real-time status display) ✔Pinqing exclusive sale
Plastic ball valve adopts high durability and low torque design, suitable for water, hot water, acid and alkali liquids
★Origin: Manufactured in South Korea and Taiwan (non-mainland OEM)✔
Certification: CSA, IP68, CE(TUV)
★Optional: Multifunctional protocol customized proportional control curve
Resistant to corrosive environment, can be painted on all-aluminum alloy metal exterior EPOXY Formosa coating
★Voltage: AC220V, AC110V (optional 0~10VDC, 2~10VDC, 1~5VDC)
★Valve Size: 1/2”~2”(DN15~DN50) Straight through full flow
★Material: valve body UPVC, CPVC, PP, PVDF; O-ring EPDM, Viton, FPM
★Pipe: socket cannula, butt joint, dental mouth, flange mouth (ANSI, JIS, DIN, ASTM, Taiwan regulations)
★Fluid: 0°C~+50°C(UPVC); 0°C~+80°C(CPVC)

★Technical consultation Looking for cheap, durable and reliable electric valves
