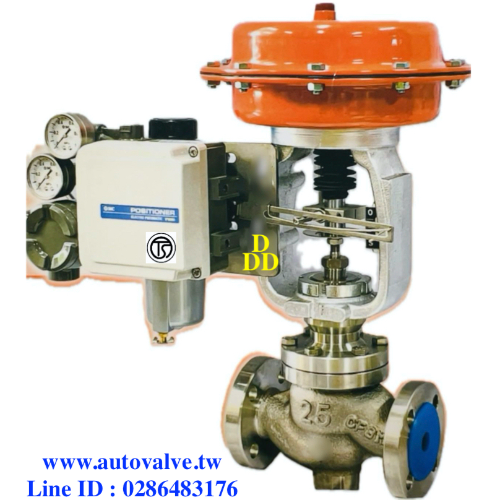

Automatic diaphragm control valve IP8000 1301-2502G Pneumatic diaphragm control valve Proportional control valve Pneumatic flow control valve (DDD CO. Taiwan)

Model: IP8000 1301-2502G IP6000 1301 SMC Japan

Category:

Exhibitor: PIN CHING AUTOMATIC VALVES CO., LTD.

Booth No: L1223

Characteristic

[Pneumatic diaphragm control valve] DDD CO. industry specializes in thanking the major domestic control valve manufacturers for their long-term cooperation and one-stop service
★Introduction: Air compressed air is used to push the valve through the pneumatic positioner to achieve automatic proportional control of the ball valve.
SMC IP8000 receives 4~20mA signals
★Features:
SMC IP8000 proportional positioner has explosion-proof TS certification mark
SMC 1301-2502G filter pressure regulator, stable air pressure source, precision all-aluminum alloy, with SMC stainless steel pressure gauge
★Origin: SMC brand made in Japan; diaphragm control valve is made in Taiwan under DDD brand and adopts drive diaphragm imported from the United States.
★Certification: Taiwan explosion-proof TS, Japan CE
★Optional: signal output 4~20mA (with explosion-proof TS); valve position sensing micro switch proximity switch (with explosion-proof TS); communication protocol feedback control; with manual function
★Air port: 1/4" PT normally closed (optional normally open)
★Valve Size: 1/2”~12”(DN15~DN300)
★Material: 304, 316, 316L, FC, WCB
★Valve type: single-seat ball type / V-port
★Mouth gauge: Flange mouth (ANSI 150LB 300LB 600LB, JIS 10K 20K 30K, DIN PN16 PN25 PN40)
★Fluid: 0°C~+100°C; 0°C~+180°C; 0°C~+280°C

★Technical consultation Looking for cheap, durable and reliable pneumatic valves
★Welcome to join Line ID: 0286483176
