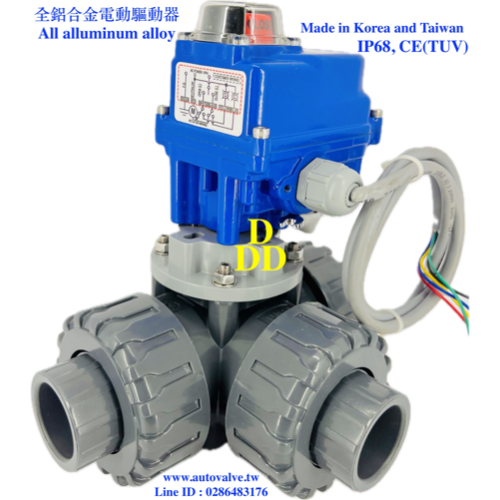

Electric three-way ball valve Electric three-way plastic ball valve Find the most professional DDD CO. Three-way electric ball valve also optional dry contact heater, IP68 CE(TUV) certification

Model: KOSAPLUS KE Series KE001 KE002

Category:

Exhibitor: PIN CHING AUTOMATIC VALVES CO., LTD.

Booth No: L1223

Characteristic

[Electric three-way ball valve] DDD CO. specializes in various three-way ball valves, all plastic three-way electric valves, stainless steel electric actuators, with plastic three-way valves
★Introduction: Use power electricity to rotate the three-way valve through the electric driver to achieve electric automatic control of the three-way ball valve.
★Features: Mini all-aluminum alloy shell electric driver, quiet and low-temperature motor, highly durable, long-term lubrication of gears at the factory, maintenance-free, with manual device (including wrench)
Plastic ball valve adopts high durability and low torque design, suitable for water, hot water, acid and alkali liquids
★Origin: Manufactured in South Korea and Taiwan (non-mainland OEM)✔
★Certification: IP68, CE(TUV)
★Optional: optional dry contact, heater, proportional control In/Out 4~20mA; manual wheel
Resistant to corrosive environment. Can be painted on all-aluminum alloy and metal exteriors. EPOXY Formosa coating
★Voltage: AC220V, AC110V, DC24V
★Valve Size: 1/2”~2”(DN15~DN80) Straight through full flow
★Material: valve body UPVC, CPVC, PP, PVDF; O-ring EPDM, Viton, FPM
★Mouth gauge: socket cannula, butt joint, dental mouth, flange mouth (ANSI, JIS, DIN, ASTM, Taiwan regulations)
★Fluid: 0°C~+50°C(UPVC); 0°C~+80°C(CPVC)

★Technical consultation Looking for cheap, durable and reliable electric valves
★Welcome to join Line ID: 0286483176
