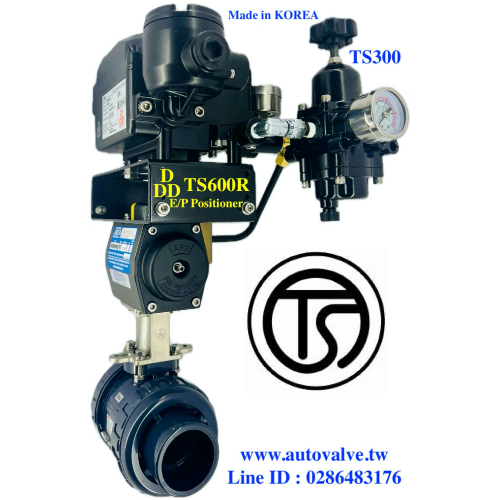

DDD TS600R Valve Positioner with PVC Ball Valve



Model: DDD TS600R TS600 TS600L

Category:

Exhibitor: PIN CHING AUTOMATIC VALVES CO., LTD.

Booth No: L1223





Characteristic



【Pneumatic Control ball valves】DDD CO specializes in thanking the major domestic valve manufacturers for their long-term cooperation and one-stop service
★Introduction: Use Air compressed air to rotate the valve through a pneumatic positioner to achieve automatic proportional control of the ball valve.
TS600R receives 4~20mA signal – ITALY original imported SIRCA pneumatic driver (origin is transparent, non-China OEM)
★Features:
TS600R proportional controller complies with the Ministry of Labor’s explosion-proof TS certification (certificate number TD13001L)✔
TS300 filter pressure regulator, stable air pressure source, made in Korea, precision all-aluminum alloy, with stainless steel pressure gauge
★Origin: DDD brand TS600R made in South Korea (non-mainland OEM) No production locator in Taiwan ✔
The pneumatic actuator is imported from ITALY; the ball valve is purely made in Europe, America and Japan.
★Valve brands: You are welcome to bring your own Japanese SEKISUI, +GF+, AGRU, A-Sung.... Valves of each brand can be customized and assembled in limited quantities.
★Certification: ATEX, IECEx, CCC, NEPSI, CSA, CE international certification (non-self-declared CE is made in Taiwan) ✔
★Optional: Output 4~20mA; Valve position sensing-micro switch display; Multiple transmission feedback control; Manual Override (Gear Box)
★Port: 1/4”PT (double acting; single acting)
★Size: 1/2”~4”(DN15~DN100) Straight through full flow
★Material: UPVC, PP, CPVC, ABS, PVDF
★Mouth gauge: dental mouth, butt joint, socket, flange mouth (ANSI, JIS, DIN)
★Fluid: 0°C~+50°C; 0°C~+80°C

★Technical consultation Looking for cheap, durable and reliable pneumatic valves
★Welcome to join Line ID: 0286483176
