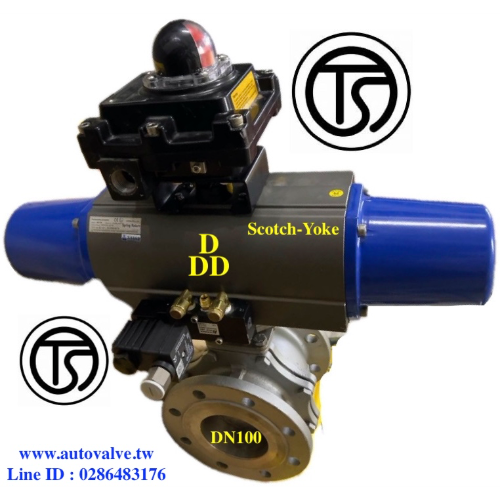

Pneumatic Actuated Ball Valve with Limit Switch Box and Solenoid Valve (Explosion Proof)
Model: AS125 APL-410N 0519
Exhibitor: PIN CHING AUTOMATIC VALVES CO., LTD.
Booth No: L1223
Characteristic
[Automated control valve] DDD CO. Industry specializes in assembling various pneumatic valve accessories with many changes
★Introduction: Use Air compressed air to rotate the valve through the pneumatic driver to achieve automatic control of the ball valve.
★Optional explosion-proof display type micro switch and explosion-proof air-controlled solenoid valve all comply with Taiwan TS explosion-proof mark✔
★Features: AS driver adopts Scotch-Yoke durable shift fork crankshaft sliding oil-free and maintenance-free 2 million times
The ball valve adopts high durability and low torque design, suitable for water, hot water, acid and alkali liquids
★Origin: The pneumatic actuator is purely made in Korea, SIL3 ATEX IP68 CE (non-mainland OEM)✔
The ball valve is purely made in Taiwan, a domestic manufacturer (non-mainland OEM)✔
highly durable, high quality, low torque, high pressure, ultra-low temperature, and ultra-high temperature.
★Certification: Driver SIL3, ATEX, IP68, CE(TUV)
★Port: 1/4”PT (double acting; single acting)
★Size: 1/2”~12”(DN15~DN300) Straight through full flow
★Material: Valve body 316, 304, 316L, FC, WCB
★Mouth gauge: Flange mouth (ANSI-150LB JIS-10K, DIN)
★Fluid: -20°C~+100°C; -40°C~+150°C; 0°C~+260°C; 0°C~+500°C
★Technical consultation Looking for cheap, durable and reliable pneumatic valves
★Welcome to join Line ID: 0286483176
