Stober Double bores precision racks

Booth No: N003

Characteristic

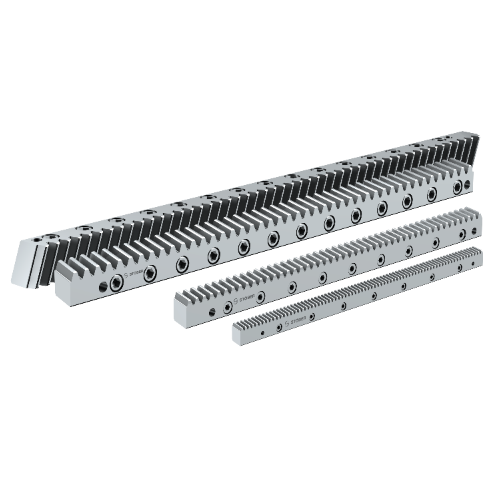

Our new precision gear racks with twice the bores eliminate the need for time-consuming pinning. The contact pressure on the machine body is doubled: Instead of every 125 millimeters as usual, gear racks are fastened again after just 62.5 millimeters. Although time-consuming pinning is not required, it remains an option thanks to the existing pin bores. This provides increased safety. And maximum ease of installation.
Our precision gear racks are available in various lengths and modules, for the highest demands on smooth operation and positioning accuracy.
Module: 2 – 6 mm
Max. feed force: 12.6 – 83.1 kN
Helical, hardened, and smoothed
Gearing quality 6 in accordance with DIN 3962-1
Length: 500 mm, 1000 mm
