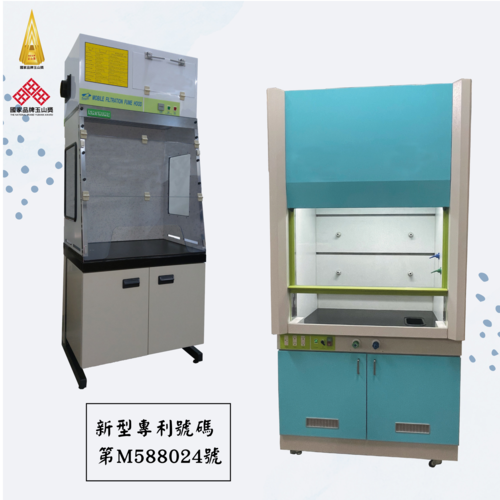

Fume Hood



Model: MFH & BCH

Category: Industrial Supply

Exhibitor: ENSHINE SCIENTIFIC CORPORATION

Booth No: N/A





Characteristic



Simple Type Fume Hood
Features
The exhaust hood cabinet features a compact and lightweight design, reinforced with a stainless steel support frame structure on all sides for durability and long service life. It is easy and convenient to move and install.
Equipped with an upper air damper control design, allowing users to freely adjust the damper opening to control exhaust airflow volume.
Special flip-up door panel and leak-proof frame design effectively prevent the leakage of hazardous fumes, ensuring excellent exhaust performance.
Special magnetic door positioning device securely holds the operation door panel in the open position, providing convenient operation and ease of use.
Special make-up air design effectively guides contaminants upward toward the exhaust outlet.
Hood dimensions and width can be modified and customized according to customer requirements.
Filtered (Ductless) Fume Hood
External Make-Up Air Design

Special lower side external make-up air design assists airflow from both sides, allowing exhaust gases to be discharged more smoothly and efficiently.

Air Curtain Design

A specially designed air curtain is generated from top to bottom at the front upper section of the hood, effectively preventing fumes from moving forward and leaking outward.

Special Airflow Direction Design

The specially designed airflow direction guides exhaust air downward through the filtration box, enabling the use of filter media such as dust collection bags and others, thereby expanding the application range of the ductless fume hood.

Improved High-Performance Fume Hood
Special Multi-Layer Leak Prevention Design
Side vortex elimination device
Bottom vortex elimination device
Top-down isolation air curtain
Dual Blowing and Suction Vortex Elimination Structure
Can be connected to an air curtain blower to provide blowing mode, working together with the vortex elimination device to achieve powerful leakage prevention performance.
Can also be directly connected to the exhaust blower without the need for an air curtain blower, providing an economical suction mode while effectively eliminating side and bottom vortex formation.
Minimum Airflow with Maximum Exhaust Efficiency

Provides an improved high-performance fume hood design that prevents hazardous gas leakage while maintaining energy-saving performance.

Adjustable Air Damper

The exhaust hood opening is equipped with a manual air damper to adjust airflow volume and static pressure according to on-site requirements.

Storage Cabinet Exhaust Connection

Includes a lower storage cabinet exhaust outlet that can be directly connected to the exhaust hood for effective ventilation, convenient installation, and practical use.

Near-Zero Leakage Performance

Provides near-zero leakage exhaust performance in compliance with international standards such as ASHRAE 110 and EN 14175, ensuring a safe and comfortable working environment.
