PDL12W DC/DC converter delivers 12W in SIP-8 package

Model: PDL12W

Booth No: M1328

Characteristic

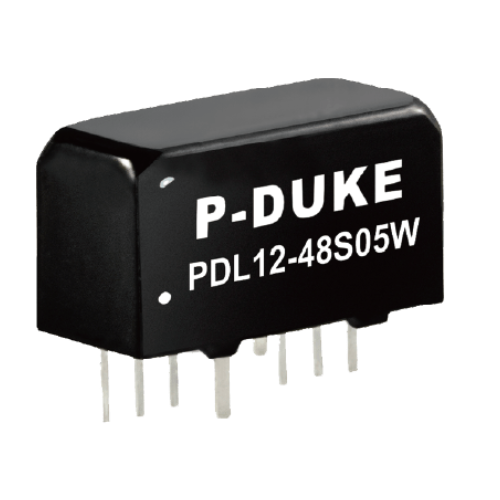

P-DUKE has launched its high power density DC/DC converter series in a SIP-8 package named PDL12W. It expands P-DUKE’s successful SIP-8 casing DC/DC converter range from 2W to 9W with a 12W version. There are three 4:1 input voltage ranges available: 4.5-18, 9-36, and 18-75VDC allowing 25V, 50V, and 100V transient pulses for 1 second. Available output voltages are 3.3, 5, 5.1, 9, 12, 15, 24, ±5, ±12, and ±15VDC which provide up to 12W output power.

With thermal dissipating via its metal casing and high conversion efficiency of up to 90%, operation from -40°C to +105°C ambient temperatures without derating is possible.
To cope with demanding space requirements of ever-decreasing size applications, it saves more than 50% space, compared with the DIP-24 package, and features an input-to-output isolation of 1600VDC and optionally 3000VDC. The fixed switching frequency pulse-width modulation topology makes an additional EMC filtering easier in comparison to frequency modulation control circuits. The full protection functions of the PLD12W are over-current, short-circuit, under-voltage lockout, and output over-voltage protection, helping users to create a safe and reliable power system in any application.

This series is certified according to IEC/EN/UL 62368-1. Additionally, shock and vibration levels are compliant with MIL-STD-810F. With an operating altitude of up to 5000 meters and a wide operating ambient temperature of -40°C to +105°C these converters are entirely suitable in any ruggedized, high-reliability industrial environment.

Features-

■ 12W Output Power in a SIP8 Industrial Standard Package
■ 4:1 Input Voltage Range from 4.5-18, 9-36, and 18-75V
■ Operating Temperature: -40°C to +105°C
■ Approved according to IEC/EN/UL 62368-1 Standards
■ 1600VDC or 3000VDC Input-Output Isolation
■ 3-Year Product Warranty
