Compact Design Medical 150W AC/DC Power Supplies

Model: MAD150

Booth No: N/A

Characteristic

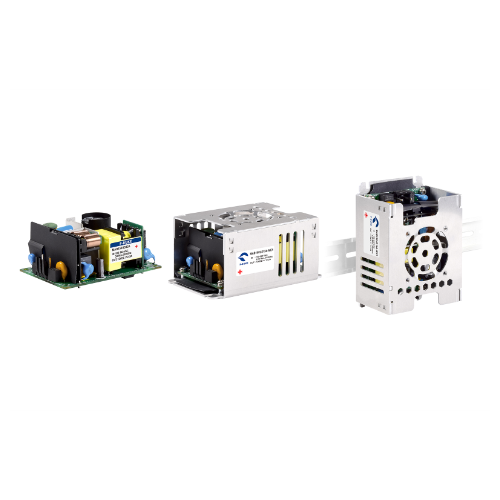

P-DUKE has launched the MAD150, a new medical-grade AC/DC power supply series capable of delivering up to 150W of continuous output power and 200W peak power for 5 seconds. This compact 3”x2” package is available in open frame, enclosed, and DIN-rail options, with connection types including JST connectors, Molex connectors, and screw terminals.

The series features a universal input range from 85 to 264 Vac and supports DC input voltages from 88 to 370 Vdc, making it suitable for most industries worldwide. The MAD150 series provides single output options for medical devices at 12, 15, 18, 24, 28, 36, 48, and 54 Vdc, with up to 7% output adjustability. With conversion efficiency reaching up to 94%, it reduces thermal generation and expands operating temperature ranges. Designed for medical applications, it offers less than 100μA patient leakage current, 2xMOPP (Means of Patient Protection), and 4000 Vac input-to-output isolation, suitable for type BF applied parts.
