High-Efficiency Compact DC/DC Converters: LCD50W and FED100W Series

Model: LCD50W&FED100W

Booth No: M1328

Characteristic

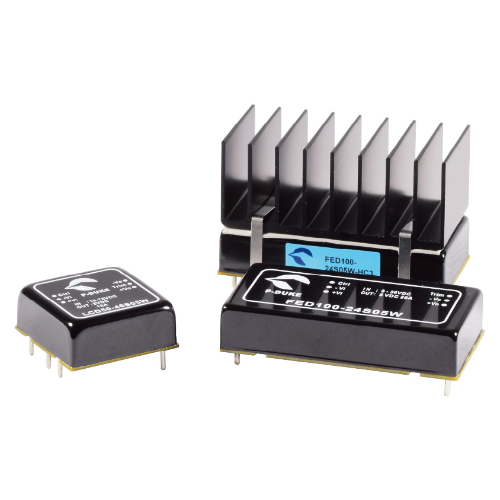

P-DUKE proudly presents the new DC/DC converter series, LCD50W, and FED100W, featuring compact 1”x1” and 2”x1” designs. These converters cater to the rigorous demands of modern technology and electronic systems, offering exceptional power density, efficiency, and reliability.

The LCD50W series delivers up to 50W of output power within its compact 1”x1” industrial standard package. It supports input voltage ranges of 9 to 36 Vdc and 18 to 75 Vdc, providing single and dual outputs of 5, 12, 15, 24, ±12, ±15, and ±24 Vdc.

The FED100W series offers up to 100W of output power in a compact 2”x1” package. It accommodates input voltage ranges from 9 to 36 Vdc and 18 to 75 Vdc, with single outputs of 5, 12, 15, 24, 28, 48, and 54 Vdc.

Both series feature impressive power densities—110W/in³ for the LCD50W series and 119W/in³ for the FED100W series, making them an ideal space-saving solution for system integration. With a remarkable 94% conversion efficiency, they minimize power loss and heat generation, extending operating temperatures to ease thermal management challenges. Certified to IEC/EN/UL 62368-1 standard and compliant with MIL-STD-810F for shock and vibration, these converters operate at altitudes up to 5000 meters and within ambient temperatures ranging from -40°C to +110°C. Their 4:1 input voltage range makes them perfect for rugged, high-reliability applications such as servo systems, automation control, measurement instruments, and automated inspection equipment.
