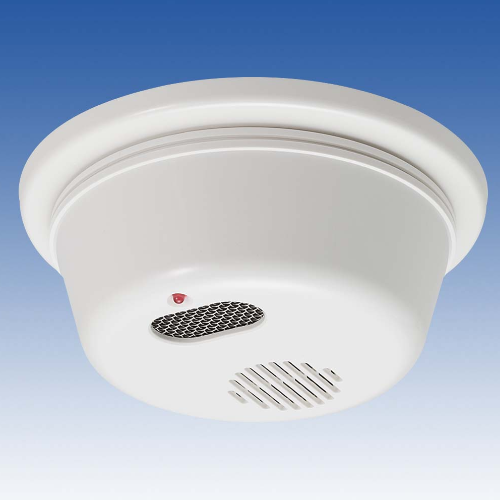

UV SENSOR



Model: FS-2000E、FS-3500E

Category: Key Components

Exhibitor: NETER TECHNOLOGY CO., LTD.

Booth No: N/A





Characteristic



Instant detection of flames
The flame sensor "FS-2000E" detects ultraviolet rays in flames, so even weak flames can be detected quickly and an alarm can be issued before the fire spreads.
Detection range adjustment function
The sensor head can be adjusted in four steps (30°) in the vertical direction, so any detection range can be set.
Alarm memory function
When multiple sensors are set, the sensor that outputs the alarm can also be determined.
The memory indicator on the sensor body flashes for 3 minutes and lights up for 47 minutes after the alarm is output.
System upgradeable
When a flame is detected, the built-in buzzer sounds and can be output externally (voltage-free relay contact), so it can be connected to a remote disaster prevention controller, etc.
Eight-step sensitivity adjustment to cope with various setting environments
By using the four-step detection timer setting and the two-step sensitivity adjustment together, the optimal detection sensitivity that suits the setting environment can be obtained.
●Detection timer: The alarm action is executed only when the flame (ultraviolet rays) continues for the set time.
<0.2 seconds, 1 second, 6 seconds, 30 seconds>

Humanized design
●The volume of the alarm buzzer is as high as 80dB (1m from the front of the sensor), and it can also be set to mute.
●With anti-tampering output, it can prevent unauthorized dismantling or pranks
