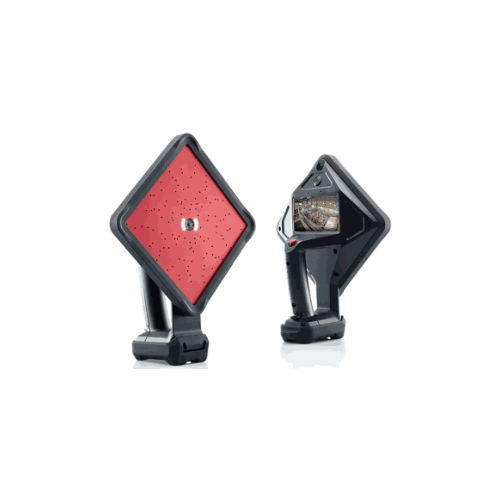

Ultra Pro Ultrasound Camera



Category: Industrial Automation

Exhibitor: EZO CORPORATION

Booth No: N/A





Characteristic



The detection surface of the Ultra Pro is composed of 124 ultrasonic sensors providing 180-degree ultrasound detection capability. When an ultrasonic wave from a sound source hits the surface, different sensors will detect it at different times. Use these time differences to locate sound sources and display them as pictures. In addition, Ultra Pro can observe an unlimited number of sound sources simultaneously. The camera provides high-resolution clear images and is equipped with a wide-angle 170-degree visible camera, allowing users to inspect a wide range of facilities in a short time. It can provide 3200 lumens of illumination in a close range, and it is convenient to replace the SD card or WIFI file upload to the cloud. Ultra Pro X is an optional model with ATEX or IECEx explosion-proof safety-certifications.

Features

Built-in WiFi
IP54 protection
Lightweight body
124 low-noise sensors
10-degree edge display
170-degree Visible camera
Snapshot and Video record
Regardless of the kind of gas
Useable under direct sunshine
Automatically display dB value
180-degree Ultrasound camera
Automatically Quantify leakage
Automatically measure distance
1400 lumens LED light, dimmable
Automatically focus ultrasonic image
Excellent for partial discharge detect
Minimum detectable leakage <0.001 CFM
Automatic flashlight while taking a picture
Good for both vacuum and pressure leakage
Support high volume interchangeable SD Card
