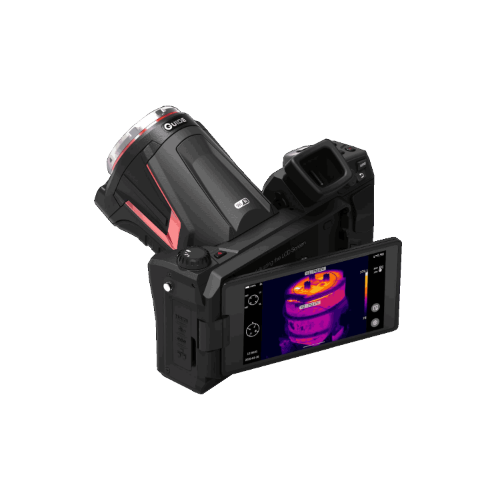

PS4 high performance handheld thermal camera

Booth No: N/A

Characteristic

The PS series is designed for professional thermal imaging engineers. The use of high-sensitivity and high-resolution thermal image detectors provides clearer thermal images and higher temperature measurement accuracy. Supplemented by the Android operating system, large screen display, and rotatable lens structure, it is easy to use and powerful. It can also record visible light and thermal images simultaneously, and display key observation locations in picture-in-picture or MIF. At the same time, through the open Android platform application, it can be extended to a multi-purpose mobile infrared thermal imaging application platform.
640×480/384x288 pixel infrared thermal imaging detector
1280x960/768x576, 4x super-resolution thermal image
Panoramic Stitching
13M/8M pixel visible light camera
Simultaneous recording of infrared thermal images and visible light dynamic images
30mk/40mk/45mk Very High Thermal Sensitivity
30Hz screen update rate
Temperature measurement range -40~800°C, expandable to 2000°C, automatic shift
The display can be rotated 270° and the lens can be rotated 70°
Automatic laser ranging, displayed on the screen
One-key high-speed laser focusing (<0.4 seconds)
High brightness 1280x720 high resolution 5" touch screen
1280×960 high-resolution LCOS viewfinder
WIFI share, transfer, control, print
Built-in 64G storage and support 64G SD storage
Mini HDMI video output
Wide-angle, telephoto, macro, high temperature, and other lenses can be added
Automatic lens recognition
1~35x/1~10x continuous digital zoom
Support AI voice dictation, OCR, and keyboard input file naming
Built-in GPS, electronic compass, WiFi, Bluetooth, photoreceptor, fill light, laser guide
