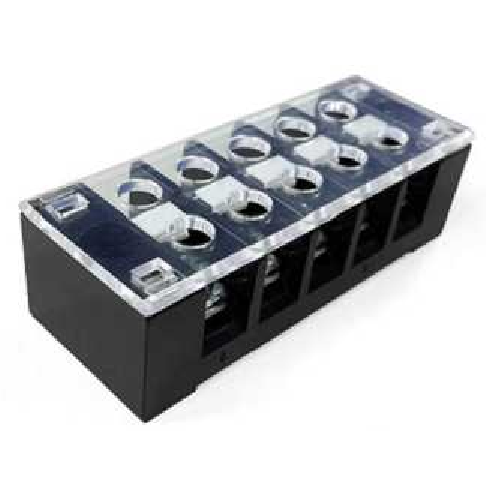

TB-31505CP 300V 15A 5 Pole Panel Mounted Fixed Terminal Block
Model: TB-31505CP
Category: Industrial Automation
Exhibitor: SHINING E&E INDUSTRIAL CO., LTD.
Booth No: N/A
Characteristic
TB-31505CP 300V 15A 5 Pole Panel Mounted Fixed Terminal Block
The terminal block does not need to be mounted on a 35mm (width) DIN rail. It can be installed on panel through screws.
The wiring method is by Bare Wiring. It is also okay if you want to wire through a Ring or Spade Terminal.
To reduce the risk of electric shock when wiring, the terminal block comes with a Protective Cover.
There is holes for screw driver on the cover, no release the cover when wiring.
Electrical Specifications: 300V, 15A, 5 Pole
Dimension: 65.2 x 25.0 x 19.0mm (L x W x H)
Wire Size: 0.52~2.08mm2 (AWG 20-14)
Screw Size: M4
Housing/ Insulated Material: Thermoplastic
Flame Retarded Grade: UL94-V0
UL/cUL approved.
