Acrylic dyeing parts Mechanism model

Model: 壓克力染色件機構模型

Exhibitor: JIERCHEN ENTERPRISE CO., LTD.

Booth No: P1310

Characteristic

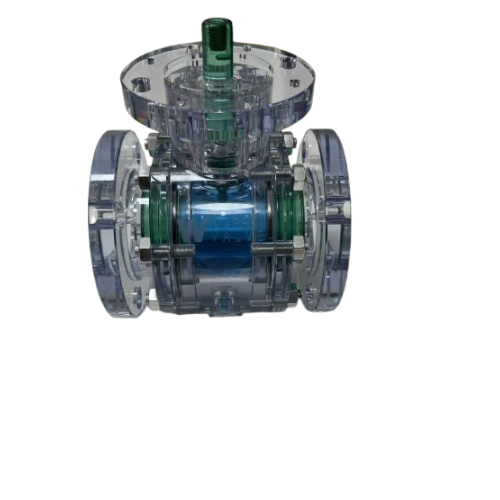

This is a mechanism model composed of acrylic dyed parts, which is a mechanical structure simulation component for display or educational purposes.

Part feature analysis:
Material:
The shell is made of transparent material, acrylic.
Some parts (such as the central axis and connectors) are dyed, which are often seen in teaching simulators or display samples.

Mechanism composition:
There is a cylindrical structure in the center, simulating a turbine or valve body.
The protruding axis on the top and the transparent discs on both sides are fluid devices (such as flow meters, rotary valves) or pneumatic mechanisms.

Purpose:
Transparent teaching display model
This design is often used in engineering education to demonstrate the internal working principles of machinery, making it easy to observe phenomena such as rotation, flow, and movement.
Fluid component display (such as flow meters, impellers)
If the central area can rotate, it can simulate the effect of pushing the blades when liquid or gas flows.

Observation mechanism sample (transparent prototype)
Used to test the interference or assembly gap between internal components.

Production technology features:
Use transparent materials with dyeing to emphasize structural identification.
Use CNC processing.

Welcome to contact us for more product information.
The professional team will provide you with detailed instructions and technical support.

Jierchen Enterprise Co., Ltd.
Tel: +886-2-2958-3469
Email: sales@jierchen.com.tw
Official website: https://jierchen.com.tw/en
