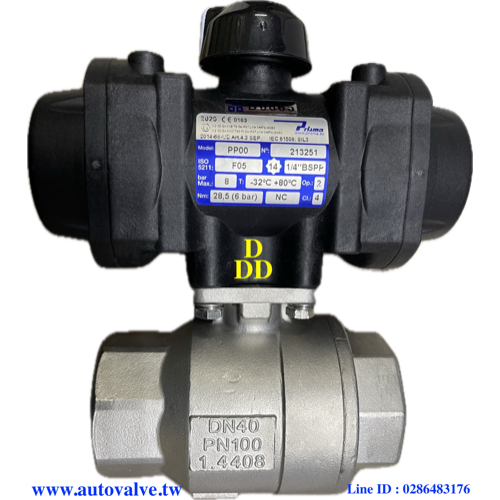

Plastic pneumatic ball valve Spanish Prisma plastic pneumatic actuator is the most professional in DDD CO. Industry. Optional stainless steel actuator

Model: Pirsma PP00 PP10

Exhibitor: PIN CHING AUTOMATIC VALVES CO., LTD.

Booth No: L1223

Characteristic

[Plastic Pneumatic Ball Valve] DDD CO. specializes in various plastic pneumatic actuators, all plastic pneumatic valves, stainless steel pneumatic actuators, with plastic ball valves
★Introduction: Use Air compressed air to rotate the ball valve through the pneumatic driver to achieve automatic control of the ball valve.
★Features: Plastic pneumatic actuator is extremely lightweight, highly durable, factory lubricated for long-term maintenance-free
The ball valve adopts high durability and low torque design, suitable for water and hot water
★Origin: Manufactured in Spain✔, the ball valve is made in Taiwan
★Certification: SIL3 IEC61508, ATEX, CE(0613) international certification
★Optional: optional stainless steel driver; plastic or stainless steel air-controlled solenoid valve;
★Pneumatic accessories optional: all plastic or all stainless steel display type micro switch; all plastic valve proportional control positioner
All stainless steel valve positioner; all stainless steel manual gear operator; metal exterior coating EPOXY Formosa coating
★Port: 1/4”PT (double acting; single acting)
★Size: 1/2”~4”(DN15~DN100) Straight through full flow
★Material: 316, 316L, WCB
★Mouth gauge: Dental mouth (PT or NPT)

★Technical consultation Looking for cheap, durable and reliable pneumatic valves
★Welcome to join Line ID: 0286483176
