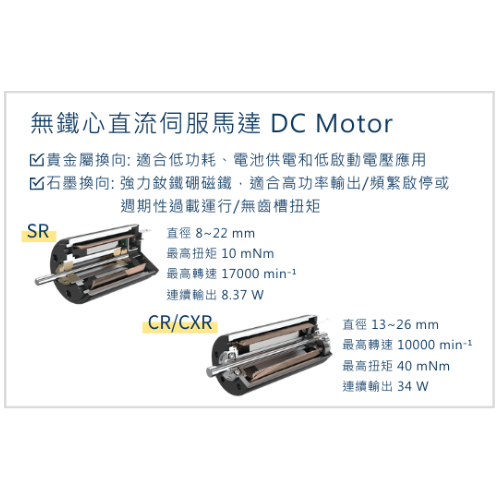

DC Motor



Model: 1724...SR/2642...CR/2237...CXR

Category: Key Components

Exhibitor: NRC ENGINEERING & PRECISION DRIVES CO., LTD.

Booth No: N/A





Characteristic



【SR Series】DC-Micromotors with precious metal commutation
These ironless DC motors are the most compact in the industry today and most types feature integrated high resolution encoders for use in highly precise positioning and speed control applications.

The commutation system is characterized by its small size, low contact resistance and clean low noise commutation signal. It is ideal for use in battery operated applications where current is at a premium.

Combinations with a wide variety of gearheads and controllers make it possible to create the best system solution for even the most challenging applications.

【CR Series】DC-Micromotors with graphite commutation

Highly stable and low-wear graphite commutation, extremely powerful neodymium magnets and a particularly high copper content in the winding of the FAULHABER rotor give the CR series its enormous power. The impressive power range of 19 to 224 mNm is ideal for high-performance applications with fast start/stop operation or periodic overload conditions.

Thanks to the extremely high power density as well as the outstanding dynamics with minimal rotor inertia, the CR family is the most powerful product family of the entire FAULHABER DC range. The standard drive can be combined with highresolution optical or magnetic encoders for applications with precise speed control or positioning tasks. A broad and optimally matched selection of gearheads is available to extend the range of requirements that this series is able to fulfil.

【CXR Series】DC-Micromotors with graphite commutation

The CXR series combines power, robustness and control in a compact form. This is ensured by graphite commutation, highquality neodymium magnets and the tried-and-tested winding of the FAULHABER rotor.

The powerful neodymium magnet gives the motors a high power density with a continuous torque ranging from 3.6 to 40 mNm. The impressive performance data and the compact size open up a wide spectrum of possible applications at an optimised price/performance ratio. The standard drive can be combined with high-resolution optical or magnetic encoders for applications with precise speed control or positioning tasks. A broad and optimally matched selection of gearheads is available to extend the range of requirements that this series is able to fulfil.
