DC Motor



Model: 1218/1228/1627...SXR/1627...GXR

Category: Key Components

Exhibitor: NRC ENGINEERING & PRECISION DRIVES CO., LTD.

Booth No: N/A





Characteristic

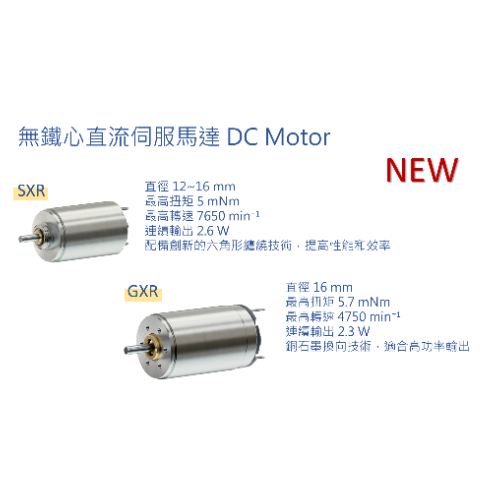

【SXR Series】DC-micromotors with innovative winding for higher performance as standard
The motors of the FAULHABER SXR product family set new standards in the areas of performance and versatility. Equipped with an innovative, hexagonal winding technology with high copper filling factor and high proportion of straight lines, they achieve significantly increased performance and efficiency. The DC microdrives are available in flexible voltage variants from 3 to 18 V as well as in various bearing configurations. The optimized rotor balancing ensures smooth speed control and thereby contributes to the durability of the motors.

The SXR family can be combined with a number of FAULHABER products to form a compact, diameter-compliant drive solution. Individual configuration options ranging from front and rear shaft adaptation to options for vacuum and temperature environments ensure high flexibility and suitability for use in a wide range of applications.

【GXR Series】Powerful DC-motors with graphite commutation
The motors of the GXR family offer outstanding robustness, durability and performance. Unlike the structurally identical SXR family, the GXR motors are graphite-commutated and therefore suitable for applications that require particularly high current and performance. They offer flexible voltage variants from 4.5 V to 24 V and are available in various bearing configurations. Thanks to the hexagonal winding with high copper filling factor and optimized straight section, the DC-motors are temperature-stable and thus ensure increased efficiency.

The GXR drives are also characterized by a high degree of flexibility due to their customizability – from modifications to the front and rear shafts to options for use in vacuum or high-temperature environments. They can be combined with many different products from the FAULHABER range, including diameter compliant gearheads or encoders with and without line driver.
