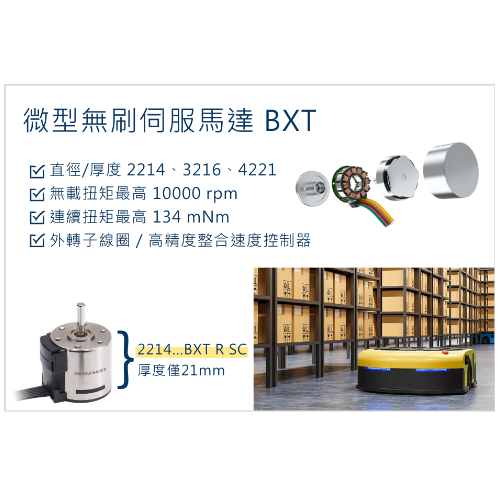

Brushless DC Motor BXT series



Model: 2214/3216/4221...BXT R/4221...BXT H

Category: Key Components

Exhibitor: NRC ENGINEERING & PRECISION DRIVES CO., LTD.

Booth No: N/A





Characteristic



Brushless flat motors with External rotor technology
The external rotor motors of the BXT series set new standards: thanks to innovative winding technology and optimum design, the BXT motors deliver a torque of up to 134 mNm. The ratio of torque to weight and size is unmatched. The iron-core motors with 14 high-performance rare earth magnets on the rotor and 12 teeth on the stator are just 14 mm, 16 mm and 21 mm long, making them suitable for applications that require a short drive solution with high torque. Combined with optical and magnetic encoders, gearheads and controls, the result is a compact drive system.
