EtherCAT slave 數位I/O控制模組(數字量)

產品型號：ECD8216

產品分類：智慧製造相關

廠商名稱：健昇科技股份有限公司

攤位號碼：K1326

產品特色

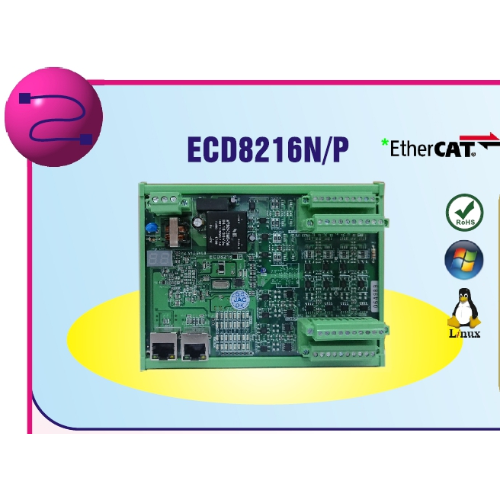

ECD8216 is an EtherCAT compliant digital I/O slave module.
The photo isolated input design provides dry contact,
TTL and wet contact with different polarity connections.

The photo isolated output can drive 1A load at 48V(max) with PMOS or NMOS output options.
also provide the software counter for any of the inputand its response up to 100Hz square wave.

All the I/O signals can change polarity by software,

JS Automation has already built-in real time EtherCAT communication kernel within its DLL functions,
no extra real time socket is required.
