乙太網路數位I/O控制模組



產品型號：EMD9216N/P

產品分類：智慧製造相關

廠商名稱：健昇科技股份有限公司

攤位號碼：K1326



產品特色

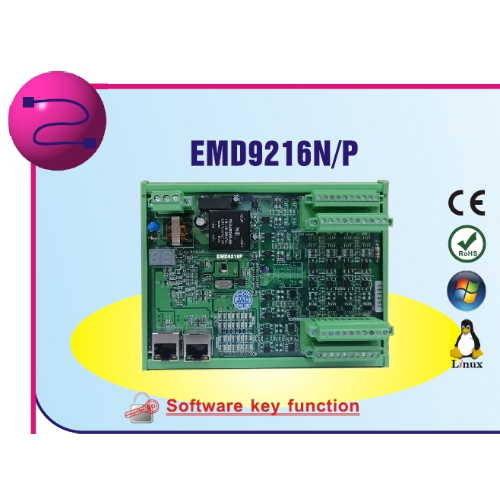

EMD9216N/P is an Ethernet digital I/O module,
offers 16 isolated digital input channels and 16 isolated digital output channels With LED ,
The photo isolated input design provides dry contact, TTL and wet contact with different polarity connections.
The photo isolated MOS or POMS output can drive 1A load at 48Vdc.
The module also provide the software counter function for any input up to 1KHz(5ms) counting speed.
All the I/O signals can change polarity by software,

To work as a standalone controller, users can configure the step
sequence by the demo program or via their application and
download the step sequences to the module. It will store on the
non-volatile memory and run the programmed steps while
standalone mode is enabled.

DLL is provided for WinXP/7/10/11 and later or LINUX platform and
sample programs come with VB.net source code.
