類比I/O控制卡(模擬量)



產品型號：AIO3382U

產品分類：智慧製造相關

廠商名稱：健昇科技股份有限公司

攤位號碼：K1326



產品特色

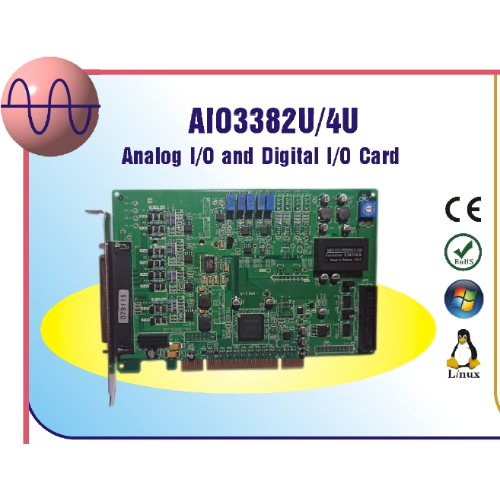

AlQ3382U/3384U has 2/4 channels analog output and
8 channel analog input with programmable input range,
2 byte configurable TTL I/O.

Option add-on module (2 channel per module) can convert the
voltage output to 0~20mA or 4~20mA output (sink or source) for
driving current loop devices.

The extra 2 32 bit timer/counter ports also provide you versatile
functions such as : programmable one-shot, rate generator,
square wave generator, software/hardware triggered strobe, event
timer/counter, triggered timer/counter, PWM generator, A small
card with abundant functions.

DLL is provided for WinXP/7/10/11 and later or Linux platform,
sample source code in VB.net and Linux Qt are also available.
